PNP vs NPN Sensor Outputs: Clear Differences, Wiring Guide, and Selection Tips

time2025/11/29

: This guide clearly explains the differences between PNP and NPN sensor outputs, how sourcing and sinking signals work, and how to wire each type correctly. Learn which output your PLC requires, avoid compatibility issues, and choose the right sensor for modern industrial automation systems.

When selecting industrial sensors—such as photoelectric sensors, proximity switches, or safety devices—one of the most important electrical distinctions to understand is the difference between PNP (sourcing) and NPN (sinking) outputs. Although both output types perform the same essential function—switching a load—they behave very differently in a control system. Choosing the wrong kind can cause wiring errors, false signals, or device incompatibility with your PLC or controller.

This guide explains the working principles of PNP and NPN sensors, how to wire them, and how to determine which output type is best suited for your application.

What Is a PNP (Sourcing) Output?

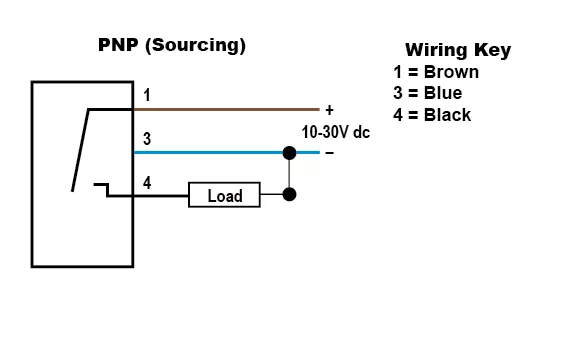

PNP sensor wiring diagram showing sourcing output with brown wire to positive, blue wire to negative, and black wire connected to load

A PNP output source current to the load. This means that when the sensor is activated, it provides a positive voltage (+V) to the output line. PNP sensors are widely used in Europe, North America, and many modern automation systems because they are well-suited for use with PLC inputs designed to receive a positive switching signal.

How PNP Works:

· Brown wire = +V

· Blue wire = 0V

· Black wire = signal output

· Output provides +V to the load when active

· Load is connected between the output and 0V

What Is an NPN (Sinking) Output?

NPN sensor wiring diagram showing sinking output with blue wire to negative, brown wire to positive, and black wire connected to load

An NPN output sinks current from the load. When the sensor activates, it pulls the output signal down to ground (0V). NPN sensors were historically more common in Asia and in older control systems.

How NPN Works:

· Brown wire = +V

· Blue wire = 0V

· Black wire = signal output

· Output pulls to 0V when active

· Load is connected between +V and the output

Which Type Should You Use—PNP or NPN?

Choosing between PNP and NPN depends on your control system:

✔ Choose PNP (Sourcing) when:

· Your PLC expects positive logic

· You want easier troubleshooting and more common wiring standards

· You follow EU or US industrial automation norms

Most modern control systems prefer PNP.

✔ Choose NPN (Sinking) when:

· Your machine uses older controllers

· You work with systems originally designed for NPN

· Certain Asian-market automation systems require it

How to Avoid Compatibility Issues

To prevent wiring errors, follow these tips:

1. Check PLC Input Type

Determine whether your PLC input cards are PNP-compatible, NPN-compatible, or universal.

2. Match Sensor Output to PLC Input

PNP output → PNP input

NPN output → NPN input

3. Never Swap PNP and NPN

Mixing types can cause:

· Constant ON signals

· No switching response

· Sensor or PLC damage

4. Follow Wire Colour Codes

Most DC sensors follow the IEC standard:

· Brown = +V

· Blue = 0V

· Black = output

Summary: PNP vs. NPN at a Glance

Feature	PNP (Sourcing)	NPN (Sinking)
Active state	Provides +V	Pulls to 0V
Wiring style	Load to 0V	Load to +V
Common regions	EU, US	Asia
Compatibility	Preferred by modern PLCs	Used in legacy systems
