Cascade Safety light curtain QT4 series accessories for QCA-01 Column stainless steel bracket

group name: QT4 series Accessories

Min Order: 1 piece

brand name: DADISICK

model: QCA-01 Column stainless steel bracket for QT4 series

Delivery clauses under the trade mode: CIP

update time: Tue, 04 Nov 2025 08:56:17 GMT

contact supplier

Paramtents

Brand DADISICK
Material Stainless steel
Package size (mm) 220 * 160 * 35 mm

Packging & Delivery

Min Order1 piece

Briefing

The safety light curtain are fixed on support,and then debug according to the specific situation.

Detailed

Safety light curtain accessories Customs Data

Technical Parameters

Technical drawings

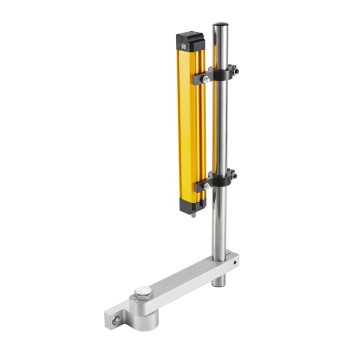

Safety light curtain QT4 series accessories for QCA-01 Column stainless steel bracket

Product List Configuration
Product number	QCA-01
Stainless steel pipe bracket	2 SET
Aluminum arm	2 SET
Fixing clip	4 PCS
Semicircular arm	2 PCS
T-shaped screw	4 PCS
Nut	8 PCS
Outer hexagonal M16 * 45	2 PCS
Shim M16	2 PCS
Spring plate M16	2 PCS
Hexagon socket screw M8 * 22	4 PCS
Hexagon socket screw M6 * 22	6 PCS
Spring plate M6	8 PCS
Steel pipe (mm)	400, 500, 600, 700, 800,1000
Package size (mm)	220 * 160 * 35 mm
Package size (kg)	2850 g

The mounting bracket for safety light curtain accessories, as an essential component to ensure the stable installation of safety light barriers on automated production lines and machinery, integrates efficiency, durability, and flexibility into its design. Made of high-strength alloys, this bracket boasts exceptional load-bearing capacity and corrosion resistance, maintaining structural stability and safety in various harsh industrial environments. Light curtains bracket's ingenious structural design, combined with precise surface treatment technology, not only ensures the accurate positioning of mounting holes but also greatly improves the convenience of installation, allowing users to effortlessly and quickly complete the fixing of safety light screens.

Basic information of installation accessories
Product number	QCA-01
Material
Aluminum arm	Aluminum wire drawing
Fixing clip	Aluminum blackening
Semicircular arm	Aluminum wire drawing
T-shaped screw	Iron nickel plating
Nut	Iron nickel plating
Outer hexagonal M16 * 45	Iron nickel plating
Shim M16	Iron nickel plating
Spring plate M16	Iron nickel plating
Hexagon socket screw M8 * 22	Iron blackening
Hexagon socket screw M6 * 22	Iron blackening
Spring plate M6	Iron nickel plating
Steel pipe	Stainless steel
