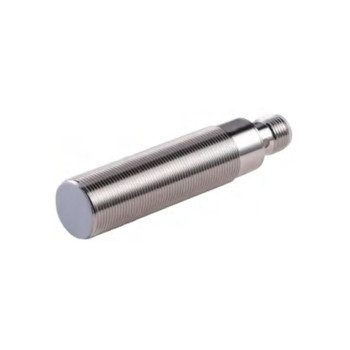

Capacitive Proximity Sensor | AC+DC Type Cylindrical M18 Brass Nickel Plated M12 Connector CR18 Pre-wired Shielded and Non-shielded | DADISICK

group name: Standard Capacitive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Capacitive Proximity Sensor | CR18 Pre-wired Shielded and Non-shielded | CR18-08TO-YAH-TA-H, CR18-08TC-YAH-TA-H, CR18-15TO-YBH-TA-H, CR18-15TC-YBH-TA-H

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:47:21 GMT

contact supplier

Paramtents

Size: Cylindrical M18
Detection range: 2-8mm Adjustable, 2-15mm Adjustable
Case material: Brass nickel plated
Connection type: M12 Connector
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded/Non-shielded
Detection range: 2-8mm Adjustable, 2-15mm Adjustable
Case material: Brass nickel plated
Connection type: M12 Connector
Output method: NPN NO/NC, PNP NO/NC

Detailed

Standard Capacitive Proximity Sensor AC+DC Type Cylindrical M18 Connector Shielded and Non-shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
CR18-08TO-YAH-TA-H	NO	2-8mm Adjustable	M12 Connector	200mA	Shielded	20-250VAC;20-250VDC	PBT
CR18-08TC-YAH-TA-H	NC
CR18-15TO-YBH-TA-H	NO	2-15mm Adjustable			Non-shielded
CR18-15TC-YBH-TA-H	NC

Electrical data
LED Display	Yes
Allowable pulsating voltage	DC RIPPLE <10%
No-load current	<2.5mA
Leakage Current	<2.5mA
Surge current	2.2A for 20ms
Minimum load current	5mA
Voltage drop	<=10VAC; <=8VDC
Switching frequency	25Hz AC; 40Hz DC
Response time	10ms
Switching Hysteresis	1%-15% of Sensing Range
Repeat accuracy	<1%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<+/-15% of Sensing Range
Sensing surface material	PBT

Data sheet

Standard Series Capacitive Proximity Switch DataSheet
