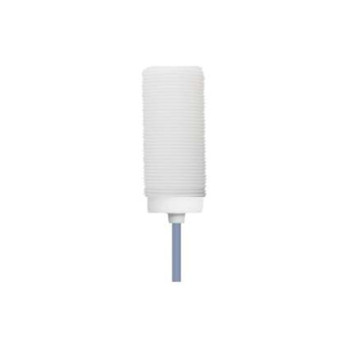

Capacitive Proximity Sensor | Cylindrical M30 PTFE 2 Meter Cable CR30 Pre-wired Shielded and Non-shielded | DADISICK

group name: Standard Capacitive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Capacitive Proximity Sensor | CR30 Pre-wired Shielded and Non-shielded | CR30-20NO-ZAA-3A-F, CR30-20NC-ZAA-3A-F, CR30-20PO-ZAA-3A-F, CR30-20PC-ZAA-3A-F, CR30-30NO-ZBA-3A-F, CR30-30NC-ZBA-3A-F, CR30-30PO-ZBA-3A-F, CR30-30PC-ZBA-3A-F

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 04:35:06 GMT

contact supplier

Paramtents

Size: Cylindrical M30
Detection range: 2-20mm Adjustable, 2-30mm Adjustable
Case material: PTFE
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded/Non-shielded
Detection range: 2-20mm Adjustable, 2-30mm Adjustable
Case material: PTFE
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC

Detailed

Standard Capacitive Proximity Sensor Cylindrical M30 Pre-wired Shielded and Non-shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
CR30-20NO-ZAA-3A-F	NPN NO	2-20mm Adjustable	2M Cable	200mA	Shielded	10-30VDC	PTFE
CR30-20NC-ZAA-3A-F	NPN NC
CR30-20PO-ZAA-3A-F	PNP NO
CR30-20PC-ZAA-3A-F	PNP NC
CR30-30NO-ZBA-3A-F	NPN NO	2-30mm Adjustable			Non-shielded
CR30-30NC-ZBA-3A-F	NPN NC
CR30-30PO-ZBA-3A-F	PNP NO
CR30-30PC-ZBA-3A-F	PNP NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<2v
Switching frequency	100HZ
Response time	1.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PTFE

Data sheet

Standard Series Capacitive Proximity Switch DataSheet
