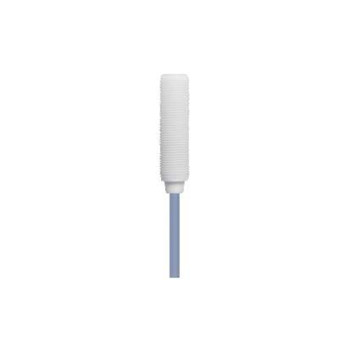

Capacitive Proximity Sensor | Cylindrical M12 PTFE 2 Meter Cable CR12 Pre-wired Non-Shielded | DADISICK
- group name
- Standard Capacitive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Standard Capacitive Proximity Sensor | CR12 Pre-wired Non-Shielded | CR12-06NO-ZBA-3A-F, CR12-06NC-ZBA-3A-F, CR12-06PO-ZBA-3A-F, CR12-06PC-ZBA-3A-F, CR12-06NO-ZBA-3A-FR, CR12-06NC-ZBA-3A-FR, CR12-06PO-ZBA-3A-FR, CR12-06PC-ZBA-3A-FR
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:45:01 GMT
Paramtents
Size: Cylindrical M12
Detection range: 2-6mm Adjustable
Case material: PTFE
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Non-shielded
Detection range: 2-6mm Adjustable
Case material: PTFE
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC
Detection range: 2-6mm Adjustable
Case material: PTFE
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC
Detailed
|
Standard Capacitive Proximity Sensor Cylindrical M12 Pre-wired Non-Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
CR12-06NO-ZBA-3A-F | NPN NO | 2-6mm Adjustable | 2M Cable | 200mA | Non-shielded | 10-30VDC | PTFE | |
CR12-06NC-ZBA-3A-F | NPN NC | |||||||
CR12-06PO-ZBA-3A-F | PNP NO | |||||||
CR12-06PC-ZBA-3A-F
| PNP NC | |||||||
CR12-06NO-ZBA-3A-FR | NPN NO | |||||||
CR12-06NC-ZBA-3A-FR | NPN NC | |||||||
CR12-06PO-ZBA-3A-FR | PNP NO | |||||||
CR12-06PC-ZBA-3A-FR | PNP NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <2v | ||
Switching frequency
| 300HZ | ||
Response time | 1.5ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PTFE | ||
