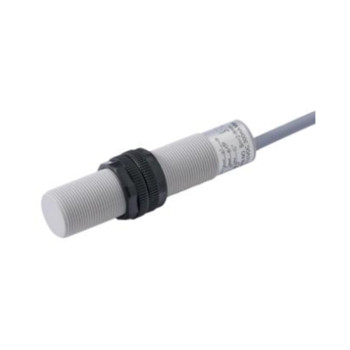

Capacitive Proximity Sensor | Cylindrical M18 PBT 2 Meter Cable CR18 Pre-wired Shielded and Non-Shielded | DADISICK

group name: Standard Capacitive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Capacitive Proximity Sensor | CR18 Pre-wired Shielded and Non-Shielded | CR18-08NO-ZAA-3A-P, CR18-08NC-ZAA-3A-P, CR18-08PO-ZAA-3A-P, CR18-08PC-ZAA-3A-P, CR18-08PS-ZAA-4A-P, CR18-08NS-ZAA-4A-P, CR18-16NO-ZAA-3A-P, CR18-16NC-ZAA-3A-P, CR18-16PO-ZAA-3A-P, CR18-16PC-ZAA-3A-P, CR18-16PS-ZAA-4A-P, CR18-16NS-ZAA-4A-P, CR18-15NO-ZBA-3A-P, CR18-15NC-ZBA-3A-P, CR18-15PO-ZBA-3A-P, CR18-15PC-ZBA-3A-P, CR18-15PS-ZBA-4A-P, CR18-15NS-ZBA-4A-P, CR18-25NO-ZBA-3A-P, CR18-25NC-ZBA-3A-P, CR18-25PO-ZBA-3A-P, CR18-25PC-ZBA-3A-P, CR18-25PS-ZBA-4A-P, CR18-25NS-ZBA-4A-P

Delivery clauses under the trade mode: CIP

update time: Tue, 04 Nov 2025 15:04:29 GMT

contact supplier

Paramtents

Size: Cylindrical M18
Detection range: 2-8mm / 2-16mm / 2-15mm / 2-25mm Adjustable
Case material: Brass nickel plated
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC,PNP NO&NC, NPN NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded / Non-shielded
Detection range: 2-8mm / 2-16mm / 2-15mm / 2-25mm Adjustable
Case material: Brass nickel plated
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC,PNP NO&NC, NPN NO&NC

Detailed

Standard Capacitive Proximity Sensor M18 Pre-Wired Shielded and Non-shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
CR18-08NO-ZAA-3A-P	NPN NO	2-8mm Adjustable	2M Cable	200mA	Shielded	10-30VDC	PBT
CR18-08NC-ZAA-3A-P	NPN NC
CR18-08PO-ZAA-3A-P	PNP NO
CR18-08PC-ZAA-3A-P	PNP NC
CR18-08PS-ZAA-4A-P	PNP NO&NC
CR18-08NS-ZAA-4A-P	NPN NO&NC
CR18-16NO-ZAA-3A-P	NPN NO	2-16mm Adjustable
CR18-16NC-ZAA-3A-P	NPN NC
CR18-16PO-ZAA-3A-P	PNP NO
CR18-16PC-ZAA-3A-P	PNP NC
CR18-16PS-ZAA-4A-P	PNP NO&NC
CR18-16NS-ZAA-4A-P	NPN NO&NC

CR18-15NO-ZBA-3A-P	NPN NO	2-15mm Adjustable	2M Cable	200mA	Non-Shielded	10-30VDC	PBT
CR18-15NC-ZBA-3A-P	NPN NC
CR18-15PO-ZBA-3A-P	PNP NO
CR18-15PC-ZBA-3A-P	PNP NC
CR18-15PS-ZBA-4A-P	PNP NO&NC
CR18-15NS-ZBA-4A-P	NPN NO&NC
CR18-25NO-ZBA-3A-P	NPN NO	2-25mm Adjustable
CR18-25NC-ZBA-3A-P	NPN NC
CR18-25PO-ZBA-3A-P	PNP NO
CR18-25PC-ZBA-3A-P	PNP NC
CR18-25PS-ZBA-4A-P	PNP NO&NC
CR18-25NS-ZBA-4A-P	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	100HZ
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series Capacitive Proximity Switch DataSheet
