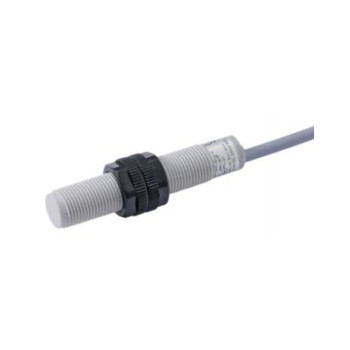

Capacitive Proximity Sensor | Cylindrical M12 PBT 2 Meter Cable CR12 Pre-wired Shielded and Non-Shielded | DADISICK

group name: Standard Capacitive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Capacitive Proximity Sensor | CR12 Pre-wired Shielded and Non-Shielded | CR12-03NO-ZAA-3A-P, CR12-03NC-ZAA-3A-P, CR12-03PO-ZAA-3A-P, CR12-03PC-ZAA-3A-P, CR12-03P-S-ZAA-4A-P, CR12-03N-S-ZAA-4A-P, CR12-06NO-ZAA-3A-P, CR12-06NC-ZAA-3A-P, CR12-06PO-ZAA-3A-P, CR12-06PC-ZAA-3A-P, CR12-06P-S-ZAA-4A-P, CR12-06N-S-ZAA-4A-P, CR12-06NO-ZBA-3A-P, CR12-06NC-ZBA-3A-P, CR12-06PO-ZBA-3A-P, CR12-06PC-ZBA-3A-P, CR12-06P-S-ZBA-4A-P, CR12-06N-S-ZBA-4A-P, CR12-08NO-ZBA-3A-P, CR12-08NC-ZBA-3A-P, CR12-08PO-ZBA-3A-P, CR12-08PC-ZBA-3A-P, CR12-08P-S-ZBA-4A-P, CR12-08N-S-ZBA-4A-P

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:38:31 GMT

contact supplier

Paramtents

Size: Cylindrical M12
Detection range: 1-3mm / 1-6mm / 1-8mm Adjustable
Case material: PBT
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC, PNP NO&NC, NPN NC&NO
Degree of protection: IP67
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded / Non-shielded
Detection range: 1-3mm / 1-6mm / 1-8mm Adjustable
Case material: PBT
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC, PNP NO&NC, NPN NC&NO

Detailed

Standard Capacitive Proximity Sensor M12 Pre-Wired Shielded and Non-shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
CR12-03NO-ZAA-3A-P	NPN NO	1-3mm Adjustable	2M Cable	200mA	Shielded	10-30VDC	PBT
CR12-03NC-ZAA-3A-P	NPN NC
CR12-03PO-ZAA-3A-P	PNP NO
CR12-03PC-ZAA-3A-P	PNP NC
CR12-03P-S-ZAA-4A-P	PNP NO&NC
CR12-03N-S-ZAA-4A-P	NPN NO&NC
CR12-06NO-ZAA-3A-P	NPN NO	1-6mm Adjustable
CR12-06NC-ZAA-3A-P	NPN NC
CR12-06PO-ZAA-3A-P	PNP NO
CR12-06PC-ZAA-3A-P	PNP NC
CR12-06P-S-ZAA-4A-P	PNP NO&NC
CR12-06N-S-ZAA-4A-P	NPN NO&NC

CR12-06NO-ZBA-3A-P	NPN NO	1-6mm Adjustable	2M Cable	200mA	Non-Shielded	10-30VDC	PBT
CR12-06NC-ZBA-3A-P	NPN NC
CR12-06PO-ZBA-3A-P	PNP NO
CR12-06PC-ZBA-3A-P	PNP NC
CR12-06P-S-ZBA-4A-P	PNP NO&NC
CR12-06N-S-ZBA-4A-P	NPN NO&NC
CR12-08NO-ZBA-3A-P	NPN NO	1-8mm Adjustable
CR12-08NC-ZBA-3A-P	NPN NC
CR12-08PO-ZBA-3A-P	PNP NO
CR12-08PC-ZBA-3A-P	PNP NC
CR12-08P-S-ZBA-4A-P	PNP NO&NC
CR12-08N-S-ZBA-4A-P	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<2v
Switching frequency	100HZ
Response time	1.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<5%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series Capacitive Proximity Switch DataSheet
