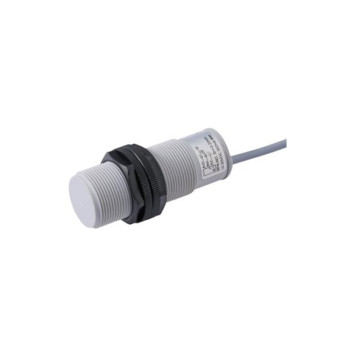

Capacitive Proximity Sensor | Cylindrical M30 PBT 2 Meter Cable CR30 Pre-wired Shielded and Non-Shielded | DADISICK

group name: Standard Capacitive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Capacitive Proximity Sensor | CR30 Pre-wired Shielded and Non-Shielded | CR30-20NO-ZAA-3A-P, CR30-20NC-ZAA-3A-P, CR30-20PO-ZAA-3A-P, CR30-20PC-ZAA-3A-P, CR30-20PS-ZAA-4A-P, CR30-20NS-ZAA-4A-P, CR30-30NO-ZBA-3A-P, CR30-30NC-ZBA-3A-P, CR30-30PO-ZBA-3A-P, CR30-30PC-ZBA-3A-P, CR30-30PS-ZBA-4A-P, CR30-30NS-ZBA-4A-P, CR30-25NO-ZAA-3A-P, CR30-25NC-ZAA-3A-P, CR30-25PO-ZAA-3A-P, CR30-25PC-ZAA-3A-P, CR30-25PS-ZAA-4A-P, CR30-25NS-ZAA-4A-P, CR30-35NO-ZBA-3A-P, CR30-35NC-ZBA-3A-P, CR30-35PO-ZBA-3A-P, CR30-35PC-ZBA-3A-P, CR30-35PS-ZBA-4A-P, CR30-35NS-ZBA-4A-P

Delivery clauses under the trade mode: CIP

update time: Tue, 04 Nov 2025 14:59:55 GMT

contact supplier

Paramtents

Size: Cylindrical M30
Detection range: 2-20mm/2-30mm Adjustable, 2-25mm/2-35mm Adjustable
Case material: PBT
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded / Non-shielded
Detection range: 2-20mm Adjustable, 2-30mm Adjustable, 2-25mm Adjustable, 2-35mm Adjustable
Case material: PBT
Connection type: 2M cable
Output method: NPN NO/NC, PNP NO/NC

Detailed

Standard Capacitive Proximity Sensor Cylindrical M30 Pre-wired Shielded and Non-Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
CR30-20NO-ZAA-3A-P	NPN NO	2-20mm Adjustable	2M Cable	300mA	Shielded	10-30VDC	PBT
CR30-20NC-ZAA-3A-P	NPN NC
CR30-20PO-ZAA-3A-P	PNP NO
CR30-20PC-ZAA-3A-P	PNP NC
CR30-20PS-ZAA-4A-P	PNP NO&NC
CR30-20NS-ZAA-4A-P	NPN NO&NC
CR30-25NO-ZAA-3A-P	NPN NO	2-25mm Adjustable
CR30-25NC-ZAA-3A-P	NPN NC
CR30-25PO-ZAA-3A-P	PNP NO
CR30-25PC-ZAA-3A-P	PNP NC
CR30-25PS-ZAA-4A-P	PNP NO&NC
CR30-25NS-ZAA-4A-P	NPN NO&NC

CR30-30NO-ZBA-3A-P	NPN NO	2-30mm Adjustable	2M Cable	300mA	Non-shielded	10-30VDC	PBT
CR30-30NC-ZBA-3A-P	NPN NC
CR30-30PO-ZBA-3A-P	PNP NO
CR30-30PC-ZBA-3A-P	PNP NC
CR30-30PS-ZBA-4A-P	PNP NO&NC
CR30-30NS-ZBA-4A-P	NPN NO&NC
CR30-35NO-ZBA-3A-P	NPN NO	2-35mm Adjustable
CR30-35NC-ZBA-3A-P	NPN NC
CR30-35PO-ZBA-3A-P	PNP NO
CR30-35PC-ZBA-3A-P	PNP NC
CR30-35PS-ZBA-4A-P	PNP NO&NC
CR30-35NS-ZBA-4A-P	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<2v
Switching frequency	100HZ
Response time	1.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<5%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series Capacitive Proximity Switch DataSheet
