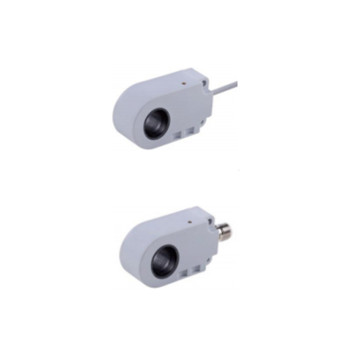

Ring Capacitive Proximity Sensor | CI16, CI17, CI21, CI22, CI25 Pre-wired and Connector Inner Hole DiameterInner 16, 17, 21, 22, 25mmmm | DADISICK

Ring Capacitive Proximity Sensor | CI16, CI17, CI21, CI22, CI25 Pre-wired and Connector Inner Hole DiameterInner 16, 17, 21, 22, 25mmmm | DADISICK
group name
Ring Capacitive Proximity Sensor
Min Order
1 piece
brand name
DADISICK
model
Ring Capacitive Proximity Sensor | CI16, CI17, CI21, CI22, CI25 Pre-wired and Connector | CI16-20NO-ZBA-3A-P, CI16-20NC-ZBA-3A-P, CI16-20PO-ZBA-3A-P, CI16-20PC-ZBA-3A-P, CI16-20PS-ZBA-4A-P, CI16-20NS-ZBA-4A-P, CI16-20NO-YBA-TA-P, CI16-20NC-YBA-TA-P, CI16-20PO-YBA-TA-P, CI16-20PC-YBA-TA-P, CI16-20PS-YBA-TA-P, CI16-20NS-YBA-TA-P, CI17-20NO-ZBA-3A-P, CI17-20NC-ZBA-3A-P, CI17-20PO-ZBA-3A-P, CI17-20PC-ZBA-3A-P, CI17-20PS-ZBA-4A-P, CI17-20NS-ZBA-4A-P, CI17-20NO-YBA-TA-P, CI17-20NC-YBA-TA-P, CI17-20PO-YBA-TA-P, CI17-20PC-YBA-TA-P, CI17-20PS-YBA-TA-P, CI17-20NS-YBA-TA-P, CI21-20NO-ZBA-3A-P, CI21-20NC-ZBA-3A-P, CI21-20PO-ZBA-3A-P, CI21-20PC-ZBA-3A-P, CI21-20PS-ZBA-4A-P, CI21-20NS-ZBA-4A-P, CI21-20NO-YBA-TA-P, CI21-20NC-YBA-TA-P, CI21-20PO-YBA-TA-P, CI21-20PC-YBA-TA-P, CI21-20PS-YBA-TA-P, CI21-20NS-YBA-TA-P, CI22-20NO-ZBA-3A-P, CI22-20NC-ZBA-3A-P, CI22-20PO-ZBA-3A-P, CI22-20PC-ZBA-3A-P, CI22-20PS-ZBA-4A-P, CI22-20NS-ZBA-4A-P, CI22-20NO-YBA-TA-P, CI22-20NC-YBA-TA-P, CI22-20PO-YBA-TA-P, CI22-20PC-YBA-TA-P, CI22-20PS-YBA-TA-P, CI22-20NS-YBA-TA-P, CI25-20NO-ZBA-3A-P, CI25-20NC-ZBA-3A-P, CI25-20PO-ZBA-3A-P, CI25-20PC-ZBA-3A-P, CI25-20PS-ZBA-4A-P, CI25-20NS-ZBA-4A-P, CI25-20NO-YBA-TA-P, CI25-20NC-YBA-TA-P, CI25-20PO-YBA-TA-P, CI25-20PC-YBA-TA-P, CI25-20PS-YBA-TA-P, CI25-20NS-YBA-TA-P
Delivery clauses under the trade mode
CIP
update time
Tue, 04 Nov 2025 14:59:56 GMT
contact supplier

Paramtents

  • Inner Hole DiameterInner: 16, 17, 21, 22, 25mm

  • Detection range: 20mm

  • Case material: PBT

  • Connection type: 2M Cable, M12 Connector

  • Output method: NPN NO/NC，PNP NO/NC

  • Degree of protection: IP67

  • Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

  • Min Order1 piece

Briefing

Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Ring Capacitive Proximity Sensor Pre-wired and Connector Inner Hole DiameterInner 16, 17, 21, 22, 25mm Datasheet
Model
Output
Connection
Inner hole diameter
Sensing distance
Maximum load current
Mounting
Working voltage & allowable pulsating voltage
Case material
CI16 Pre-wired
CI16-20NO-ZBA-3A-P
NPN,NO
2 M cable
16mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI16-20NC-ZBA-3A-P
NPN,NC
CI16-20PO-ZBA-3A-P
PNP,NO
CI16-20PC-ZBA-3A-P
PNP,NC
CI16-20NS-ZBA-4A-P
NPN NO+NC
CI16-20PS-ZBA-4A-P
PNP NO+NC
CI16 Connector
CI16-20NO-YBA-TA-P
NPN,NO
M12 connector
CI16-20NC-YBA-TA-P
NPN,NC
CI16-20PO-YBA-TA-P
PNP,NO
CI16-20PC-YBA-TA-P
PNP,NC
CI16-20NS-YBA-TA-P
NPN NO+NC
CI16-20PS-YBA-TA-P
PNP NO+NC
CI17 Pre-wired
CI17-20NO-ZBA-3A-P
NPN,NO
2 M cable
17mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI17-20NC-ZBA-3A-P
NPN,NC
CI17-20PO-ZBA-3A-P
PNP,NO
CI17-20PC-ZBA-3A-P
PNP,NC
CI17-20NS-ZBA-4A-P
NPN NO+NC
CI17-20PS-ZBA-4A-P
PNP NO+NC
CI17 Connector
CI17-20NO-YBA-TA-P
NPN,NO
M12 connector
CI17-20NC-YBA-TA-P
NPN,NC
CI17-20PO-YBA-TA-P
PNP,NO
CI17-20PC-YBA-TA-P
PNP,NC
CI17-20NS-YBA-TA-P
NPN NO+NC
CI17-20PS-YBA-TA-P
PNP NO+NC
CI21 Pre-wired
CI21-20NO-ZBA-3A-P
NPN,NO
2 M cable
21mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI21-20NC-ZBA-3A-P
NPN,NC
CI21-20PO-ZBA-3A-P
PNP,NO
CI21-20PC-ZBA-3A-P
PNP,NC
CI21-20NS-ZBA-4A-P
NPN NO+NC
CI21-20PS-ZBA-4A-P
PNP NO+NC
CI21 Connector
CI21-20NO-YBA-TA-P
NPN,NO
M12 connector
CI21-20NC-YBA-TA-P
NPN,NC
CI21-20PO-YBA-TA-P
PNP,NO
CI21-20PC-YBA-TA-P
PNP,NC
CI21-20NS-YBA-TA-P
NPN NO+NC
CI21-20PS-YBA-TA-P
PNP NO+NC
CI22 Pre-wired
CI22-20NO-ZBA-3A-P
NPN,NO
2 M cable
22mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI22-20NC-ZBA-3A-P
NPN,NC
CI22-20PO-ZBA-3A-P
PNP,NO
CI22-20PC-ZBA-3A-P
PNP,NC
CI22-20NS-ZBA-4A-P
NPN NO+NC
CI22-20PS-ZBA-4A-P
PNP NO+NC
CI22 Connector
CI22-20NO-YBA-TA-P
NPN,NO
M12 connector
CI22-20NC-YBA-TA-P
NPN,NC
CI22-20PO-YBA-TA-P
PNP,NO
CI22-20PC-YBA-TA-P
PNP,NC
CI22-20NS-YBA-TA-P
NPN NO+NC
CI22-20PS-YBA-TA-P
PNP NO+NC
CI25 Pre-wired
CI25-20NO-ZBA-3A-P
NPN,NO
2 M cable
25mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI25-20NC-ZBA-3A-P
NPN,NC
CI25-20PO-ZBA-3A-P
PNP,NO
CI25-20PC-ZBA-3A-P
PNP,NC
CI25-20NS-ZBA-4A-P
NPN NO+NC
CI25-20PS-ZBA-4A-P
PNP NO+NC
CI25 Connector
CI25-20NO-YBA-TA-P
NPN,NO
M12 connector
CI25-20NC-YBA-TA-P
NPN,NC
CI25-20PO-YBA-TA-P
PNP,NO
CI25-20PC-YBA-TA-P
PNP,NC
CI25-20NS-YBA-TA-P
NPN NO+NC
CI25-20PS-YBA-TA-P
PNP NO+NC
Electrical data
LED display
Yes
No-load current
10mA
Leakage current
<0.01mA
Voltage drop
<1.5V at 200mA
Switching frequency
500HZ (Inner hole diameter 16mm, 17mm, 21mm),400HZ (Inner hole diameter 22mm), 300HZ (Inner hole diameter 25mm)
Switching hysteresis
15%
Repeat accuracy
<2%（Sr）
Degree of protection
IP67
Operating temperature
-25℃ to +70℃
Temperature drift
±10%（Sr）
Minimum detection object
D=3mm;L=6mm (Inner hole diameter 16mm), D=4mm;L=7mm (Inner hole diameter 17mm), D=6mm;L=12mm (Inner hole diameter 21mm, 22mm), D=7mm;L=13mm (Inner hole diameter 25mm)
Reverse polarity protection
Yes
Short circuit protection
Yes
Current overload protection
220mA
Data sheet
Ring Capacitive Proximity Sensor Data Sheet
