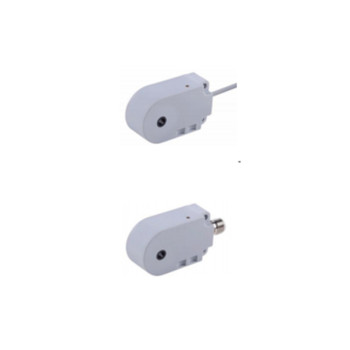

Ring Capacitive Proximity Sensor | CI09, CI10, CI12, CI14, CI15 Pre-wired and Connector Inner Hole DiameterInner 9, 10, 12, 14, 15mm | DADISICK

Ring Capacitive Proximity Sensor | CI09, CI10, CI12, CI14, CI15 Pre-wired and Connector Inner Hole DiameterInner 9, 10, 12, 14, 15mm | DADISICK
group name
Ring Capacitive Proximity Sensor
Min Order
1 piece
brand name
DADISICK
model
Ring Capacitive Proximity Sensor | CI09, CI10, CI12, CI14, CI15 Pre-wired and Connector | CI09-20NO-ZBA-3A-P, CI09-20NC-ZBA-3A-P, CI09-20PO-ZBA-3A-P, CI09-20PC-ZBA-3A-P, CI09-20PS-ZBA-4A-P, CI09-20NS-ZBA-4A-P, CI09-20NO-YBA-TA-P, CI09-20NC-YBA-TA-P, CI09-20PO-YBA-TA-P, CI09-20PC-YBA-TA-P, CI09-20PS-YBA-TA-P, CI09-20NS-YBA-TA-P, CI10-20NO-ZBA-3A-P, CI10-20NC-ZBA-3A-P, CI10-20PO-ZBA-3A-P, CI10-20PC-ZBA-3A-P, CI10-20PS-ZBA-4A-P, CI10-20NS-ZBA-4A-P, CI10-20NO-YBA-TA-P, CI10-20NC-YBA-TA-P, CI10-20PO-YBA-TA-P, CI10-20PC-YBA-TA-P, CI10-20PS-YBA-TA-P, CI10-20NS-YBA-TA-P, CI12-20NO-ZBA-3A-P, CI12-20NC-ZBA-3A-P, CI12-20PO-ZBA-3A-P, CI12-20PC-ZBA-3A-P, CI12-20PS-ZBA-4A-P, CI12-20NS-ZBA-4A-P, CI12-20NO-YBA-TA-P, CI12-20NC-YBA-TA-P, CI12-20PO-YBA-TA-P, CI12-20PC-YBA-TA-P, CI12-20PS-YBA-TA-P, CI12-20NS-YBA-TA-P, CI14-20NO-ZBA-3A-P, CI14-20NC-ZBA-3A-P, CI14-20PO-ZBA-3A-P, CI14-20PC-ZBA-3A-P, CI14-20PS-ZBA-4A-P, CI14-20NS-ZBA-4A-P, CI14-20NO-YBA-TA-P, CI14-20NC-YBA-TA-P, CI14-20PO-YBA-TA-P, CI14-20PC-YBA-TA-P, CI14-20PS-YBA-TA-P, CI14-20NS-YBA-TA-P, CI15-20NO-ZBA-3A-P, CI15-20NC-ZBA-3A-P, CI15-20PO-ZBA-3A-P, CI15-20PC-ZBA-3A-P, CI15-20PS-ZBA-4A-P, CI15-20NS-ZBA-4A-P, CI15-20NO-YBA-TA-P, CI15-20NC-YBA-TA-P, CI15-20PO-YBA-TA-P, CI15-20PC-YBA-TA-P, CI15-20PS-YBA-TA-P, CI15-20NS-YBA-TA-P
Delivery clauses under the trade mode
CIP
update time
Tue, 04 Nov 2025 08:45:36 GMT
contact supplier

Paramtents

  • Inner Hole DiameterInner: 9, 10, 12, 14, 15mm

  • Detection range: 20mm

  • Case material: PBT

  • Connection type: 2M Cable, M12 Connector

  • Output method: NPN NO/NC，PNP NO/NC

  • Degree of protection: IP67

  • Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

  • Min Order1 piece

Briefing

Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Ring Capacitive Proximity Sensor Pre-wired and Connector Inner Hole DiameterInner 9, 10, 12, 14, 15mm Datasheet
Model
Output
Connection
Inner hole diameter
Sensing distance
Maximum load current
Mounting
Working voltage & allowable pulsating voltage
Case material
CI09 Pre-wired
CI09-20NO-ZBA-3A-P
NPN,NO
2 M cable
9mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI09-20NC-ZBA-3A-P
NPN,NC
CI09-20PO-ZBA-3A-P
PNP,NO
CI09-20PC-ZBA-3A-P
PNP,NC
CI09-20NS-ZBA-4A-P
NPN NO+NC
CI09-20PS-ZBA-4A-P
PNP NO+NC
CI09 Connector
CI09-20NO-YBA-TA-P
NPN,NO
M12 connector
CI09-20NC-YBA-TA-P
NPN,NC
CI09-20PO-YBA-TA-P
PNP,NO
CI09-20PC-YBA-TA-P
PNP,NC
CI09-20NS-YBA-TA-P
NPN NO+NC
CI09-20PS-YBA-TA-P
PNP NO+NC
CI10 Pre-wired
CI10-20NO-ZBA-3A-P
NPN,NO
2 M cable
10mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI10-20NC-ZBA-3A-P
NPN,NC
CI10-20PO-ZBA-3A-P
PNP,NO
CI10-20PC-ZBA-3A-P
PNP,NC
CI10-20NS-ZBA-4A-P
NPN NO+NC
CI10-20PS-ZBA-4A-P
PNP NO+NC
CI10 Connector
CI10-20NO-YBA-TA-P
NPN,NO
M12 connector
CI10-20NC-YBA-TA-P
NPN,NC
CI10-20PO-YBA-TA-P
PNP,NO
CI10-20PC-YBA-TA-P
PNP,NC
CI10-20NS-YBA-TA-P
NPN NO+NC
CI10-20PS-YBA-TA-P
PNP NO+NC
CI12 Pre-wired
CI12-20NO-ZBA-3A-P
NPN,NO
2 M cable
12mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI12-20NC-ZBA-3A-P
NPN,NC
CI12-20PO-ZBA-3A-P
PNP,NO
CI12-20PC-ZBA-3A-P
PNP,NC
CI12-20NS-ZBA-4A-P
NPN NO+NC
CI12-20PS-ZBA-4A-P
PNP NO+NC
CI12 Connector
CI12-20NO-YBA-TA-P
NPN,NO
M12 connector
CI12-20NC-YBA-TA-P
NPN,NC
CI12-20PO-YBA-TA-P
PNP,NO
CI12-20PC-YBA-TA-P
PNP,NC
CI12-20NS-YBA-TA-P
NPN NO+NC
CI12-20PS-YBA-TA-P
PNP NO+NC
CI14 Pre-wired
CI14-20NO-ZBA-3A-P
NPN,NO
2 M cable
14mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI14-20NC-ZBA-3A-P
NPN,NC
CI14-20PO-ZBA-3A-P
PNP,NO
CI14-20PC-ZBA-3A-P
PNP,NC
CI14-20NS-ZBA-4A-P
NPN NO+NC
CI14-20PS-ZBA-4A-P
PNP NO+NC
CI14 Connector
CI14-20NO-YBA-TA-P
NPN,NO
M12 connector
CI14-20NC-YBA-TA-P
NPN,NC
CI14-20PO-YBA-TA-P
PNP,NO
CI14-20PC-YBA-TA-P
PNP,NC
CI14-20NS-YBA-TA-P
NPN NO+NC
CI14-20PS-YBA-TA-P
PNP NO+NC
CI15 Pre-wired
CI15-20NO-ZBA-3A-P
NPN,NO
2 M cable
15mm
20mm
200mA
Non-shielded
10-30VDC (Ripple <10%)
PBT
CI15-20NC-ZBA-3A-P
NPN,NC
CI15-20PO-ZBA-3A-P
PNP,NO
CI15-20PC-ZBA-3A-P
PNP,NC
CI15-20NS-ZBA-4A-P
NPN NO+NC
CI15-20PS-ZBA-4A-P
PNP NO+NC
CI15 Connector
CI15-20NO-YBA-TA-P
NPN,NO
M12 connector
CI15-20NC-YBA-TA-P
NPN,NC
CI15-20PO-YBA-TA-P
PNP,NO
CI15-20PC-YBA-TA-P
PNP,NC
CI15-20NS-YBA-TA-P
NPN NO+NC
CI15-20PS-YBA-TA-P
PNP NO+NC
Electrical data
LED display
Yes
No-load current
10mA
Leakage current
<0.01mA
Voltage drop
<1.5V at 200mA
Switching frequency
500HZ (Inner hole diameter 9mm, 10mm, 12mm),400HZ (Inner hole diameter 14mm), 300HZ (Inner hole diameter 15mm)
Switching hysteresis
15%
Repeat accuracy
<2%（Sr）
Degree of protection
IP67
Operating temperature
-25℃ to +70℃
Temperature drift
±10%（Sr）
Minimum detection object
D=2.5mm;L=4mm (Inner hole diameter 9mm, 10mm), D=2.7mm;L=5mm (Inner hole diameter 12mm), D=3mm;L=6mm (Inner hole diameter 14mm, 15mm)
Reverse polarity protection
Yes
Short circuit protection
Yes
Current overload protection
220mA
Data sheet
Ring Capacitive Proximity Sensor Data Sheet
