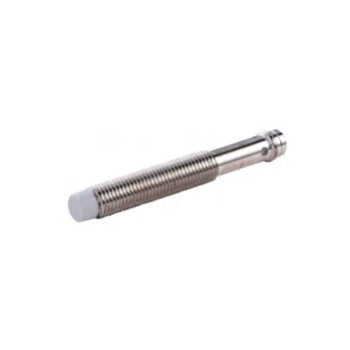

Capacitive Proximity Sensor | Cylindrical M8 M8 Connector CR08 Connector Shielded and Non-Shielded | DADISICK

group name: Standard Capacitive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Standard Capacitive Proximity Sensor | CR08 Connector Shielded and Non-Shielded | CR08-01NO-YAA-EA-H, CR08-01NC-YAA-EA-H, CR08-01PO-YAA-EA-H, CR08-01PC-YAA-EA-H, CR08-02NO-YAA-EA-H, CR08-02NC-YAA-EA-H, CR08-02PO-YAA-EA-H, CR08-02PC-YAA-EA-H, CR08-02NO-YBA-EA-H, CR08-02NC-YBA-EA-H, CR08-02PO-YBA-EA-H, CR08-02PC-YBA-EA-H, CR08-04NO-YBA-EA-H, CR08-04NC-YBA-EA-H, CR08-04PO-YBA-EA-H, CR08-04PC-YBA-EA-H

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:22:27 GMT

contact supplier

Paramtents

Size: Cylindrical ΦM8
Detection range: 0.1-1mm / 0.1-2mm / 0.1-4mm Adjustable
Case material: Brass nickel plated
Connection type: M8 Connector
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded / Non-shielded
Detection range: 0.1-1mm / 0.1-2mm / 0.1-4mm Adjustable
Case material: Brass nickel plated
Connection type: M8 Connector
Output method: NPN NO/NC, PNP NO/NC

Detailed

Standard Capacitive Proximity Sensor M8 Connector Shielded and Non-shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
CR08-01NO-YAA-EA-H	NPN NO	0.1-1mm Adjustable	M8 Connector	200mA	Shielded	10-30VDC	Brass nickel plated
CR08-01NC-YAA-EA-H	NPN NC
CR08-01PO-YAA-EA-H	PNP NO
CR08-01PC-YAA-EA-H	PNP NC
CR08-02NO-YAA-EA-H	NPN NO	0.1-2mm Adjustable
CR08-02NC-YAA-EA-H	NPN NC
CR08-02PO-YAA-EA-H	PNP NO
CR08-02PC-YAA-EA-H	PNP NC

CR08-02NO-YBA-EA-H	NPN NO	0.1-2mm Adjustable	M8 Connector	200mA	Non-Shielded	10-30VDC	Brass nickel plated
CR08-02NC-YBA-EA-H	NPN NC
CR08-02PO-YBA-EA-H	PNP NO
CR08-02PC-YBA-EA-H	PNP NC
CR08-04NO-YBA-EA-H	NPN NO	0.1-4mm Adjustable
CR08-04NC-YBA-EA-H	NPN NC
CR08-04PO-YBA-EA-H	PNP NO
CR08-04PC-YBA-EA-H	PNP NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	100HZ
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Standard Series Capacitive Proximity Switch DataSheet
