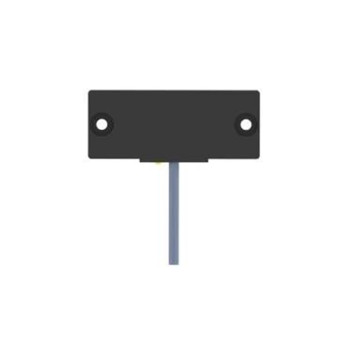

Square Capacitive Proximity Sensor | Square Type 50x20x5mm 2 Meter Cable CE50 Pre-wired Non-shielded | DADISICK
- group name
- Square Capacitive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Square Capacitive Proximity Sensor | CE50 Pre-wired Non-shielded | CE50-05NO-ZBA-3A-P, CE50-05NC-ZBA-3A-P, CE50-05PO-ZBA-3A-P, CE50-05PC-ZBA-3A-P, CE50-05PS-ZBA-4A-P, CE50-05NS-ZBA-4A-P
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:55:04 GMT
Paramtents
Size: Square 50x20x5mm
Detection range: 5mm Adjustable
Case material: PBT
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Non-shielded
Detection range: 5mm Adjustable
Case material: PBT
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Detection range: 5mm Adjustable
Case material: PBT
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Detailed
|
Square Capacitive Proximity Sensor Square Type 50x20x5mm Pre-wired Non-shielded Series Datasheet
|
||||||||||
|
Model
|
Output | Sensing distance | Switching frequency | Response time | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
CE50-05NO-ZBA-3A-P | NPN,NO | 5mm Adjustable | 300Hz | 1ms | 2 Meter Cable | 200mA | Non-shielded | 10-30VDC | PBT | |
CE50-05NC-ZBA-3A-P | NPN,NC | |||||||||
CE50-05PO-ZBA-3A-P | PNP,NO | |||||||||
CE50-05PC-ZBA-3A-P | PNP,NC | |||||||||
CE50-05PS-ZBA-4A-P | PNP NO&NC | |||||||||
CE50-05NS-ZBA-4A-P | NPN NO&NC | |||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%(Sr)
| ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection/reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PBT | ||
Data sheet
