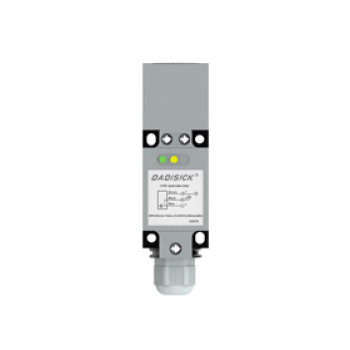

Square Capacitive Proximity Sensor | Square Type 40x40mm Quick Connector CE40 Pre-wired Shielded | DADISICK
- group name
- Square Capacitive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Square Capacitive Proximity Sensor | CE40 Pre-wired Shielded | CE40-15NO-ZAA-3A-P, CE40-15NC-ZAA-3A-P, CE40-15PO-ZAA-3A-P, CE40-15PC-ZAA-3A-P, CE40-15PS-ZAA-4A-P, CE40-15NS-ZAA-4A-P
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:10:05 GMT
Paramtents
Size: Square 40x40mm
Detection range: 15mm
Case material: PBT
Connection type: Quick Connector
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Shielded
Detection range: 15mm
Case material: PBT
Connection type: Quick Connector
Output method: NPN NO/NC, PNP NO/NC
Detection range: 15mm
Case material: PBT
Connection type: Quick Connector
Output method: NPN NO/NC, PNP NO/NC
Detailed
|
Square Capacitive Proximity Sensor Square Type 40x40mm Pre-wired Shielded Series Datasheet
|
||||||||||
|
Model
|
Output | Sensing distance | Switching frequency | Response time | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
CE40-15NO-ZAA-3A-P
| NPN,NO | 15mm | 100Hz | 1.5ms | Quick Connector | 200mA | Shielded | 10-30VDC | PBT | |
CE40-15NC-ZAA-3A-P
| NPN,NC | |||||||||
CE40-15PO-ZAA-3A-P
| PNP,NO | |||||||||
CE40-15PC-ZAA-3A-P
| PNP,NC | |||||||||
CE40-15NS-ZAA-4A-P
| NPN NO&NC | |||||||||
CE40-15PS-ZAA-4A-P
| PNP NO&NC | |||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <2v | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <5%(Sr)
| ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection/reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PBT | ||
Data sheet
