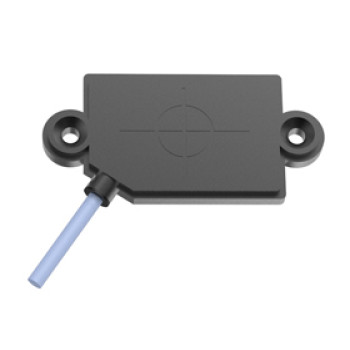

Square Capacitive Proximity Sensor | Square Type 42x25x6mm 2 Meter Cable CE25 Pre-wired Non-shielded | DADISICK

group name: Square Capacitive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Square Capacitive Proximity Sensor | CE25 Pre-wired Non-shielded | CE25-08NO-ZBA-3A-P, CE25-08NC-ZBA-3A-P, CE25-08PO-ZBA-3A-P, CE25-08PC-ZBA-3A-P

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:36:07 GMT

contact supplier

Paramtents

Size: Square 42x25x6mm
Detection range: 1-8mm Adjustable
Case material: PBT
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Non-shielded
Detection range: 1-8mm Adjustable
Case material: PBT
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC

Detailed

Square Capacitive Proximity Sensor Square Type 42x25x6mm Pre-wired Non-shielded Series Datasheet
Model	Output	Sensing distance	Switching frequency	Response time	Connection	Maximum load current	Mounting	Operating voltage	Case material
CE25-08NO-ZBA-3A-P	NPN,NO	1-8mm Adjustable	100Hz	1ms	2 Meter Cable	200mA	Non-shielded	10-30VDC	PBT
CE25-08NC-ZBA-3A-P	NPN,NC
CE25-08PO-ZBA-3A-P	PNP,NO
CE25-08PC-ZBA-3A-P	PNP,NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<2v
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%(Sr)
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Short circuit protection/reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PBT

Data sheet

Square Capacitive Proximity Sensors Data Sheet
