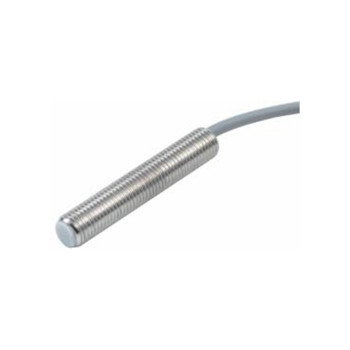

Low-temperature Resistant Capacitive Proximity Sensor | Cylindrical M8 2M cable CZ08 Pre-wired Shielded Non-Shielded | DADISICK

group name: High-temperature and Low-temperature Capacitive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Low-temperature Resistant Capacitive Proximity Sensor | CZ08 Pre-wired Shielded Non-Shielded | CZ08-01NO-ZAA-3A-H30, CZ08-01NC-ZAA-3A-H30, CZ08-01PO-ZAA-3A-H30, CZ08-01PC-ZAA-3A-H30, CZ08-02NO-ZBA-3A-H30, CZ08-02NC-ZBA-3A-H30, CZ08-02PO-ZBA-3A-H30, CZ08-02PC-ZBA-3A-H30, CZ08-01NO-ZAA-3A-H40, CZ08-01NC-ZAA-3A-H40, CZ08-01PO-ZAA-3A-H40, CZ08-01PC-ZAA-3A-H40, CZ08-02NO-ZBA-3A-H40, CZ08-02NC-ZBA-3A-H40, CZ08-02PO-ZBA-3A-H40, CZ08-02PC-ZBA-3A-H40

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:40:54 GMT

contact supplier

Paramtents

Size: Cylindrical M8
Detection range: 0.1-1mm Adjustable / 0.1-2mm Adjustable
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC
Degree of protection: IP67
Operating temperature: -30℃ to +70℃ / -40℃ to +70℃

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded / Non-Shielded
Detection range: 0.1-1mm Adjustable / 0.1-2mm Adjustable
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC

Detailed

Low-temperature Resistant Capacitive Proximity Sensor Cylindrical M8 Pre-wired Shielded Non-Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
CZ08-01NO-ZAA-3A-H30	NPN NO	0.1-1mm Adjustable	2M	200mA	Shielded	10-30VDC	Nickel Plated Brass
CZ08-01NC-ZAA-3A-H30	NPN NC
CZ08-01PO-ZAA-3A-H30	PNP NO
CZ08-01PC-ZAA-3A-H30	PNP NC

CZ08-02NO-ZBA-3A-H30	NPN NO	0.1-2mm Adjustable	2M	200mA	Non-Shielded	10-30VDC	Nickel Plated Brass
CZ08-02NC-ZBA-3A-H30	NPN NC
CZ08-02PO-ZBA-3A-H30	PNP NO
CZ08-02PC-ZBA-3A-H30	PNP NC

CZ08-01NO-ZAA-3A-H40	NPN NO	0.1-1mm Adjustable	2M	200mA	Shielded	10-30VDC	Nickel Plated Brass
CZ08-01NC-ZAA-3A-H40	NPN NC
CZ08-01PO-ZAA-3A-H40	PNP NO
CZ08-01PC-ZAA-3A-H40	PNP NC

CZ08-02NO-ZBA-3A-H40	NPN NO	0.1-2mm Adjustable	2M	200mA	Non-Shielded	10-30VDC	Nickel Plated Brass
CZ08-02NC-ZBA-3A-H40	NPN NC
CZ08-02PO-ZBA-3A-H40	PNP NO
CZ08-02PC-ZBA-3A-H40	PNP NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	100HZ
Response time	1.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-30℃ to +70℃ / -40℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	POM / PTFE

Data sheet

High-temperature Resistant and Low-temperature Resistant Capacitive Proximity Sensor Data sheet
