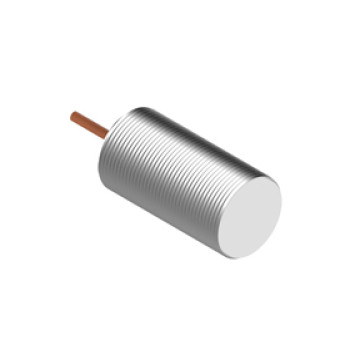

High-temperature Resistant Capacitive Proximity Sensor | Cylindrical M30 2M cable CG30 Pre-wired Shielded | DADISICK

group name: High-temperature and Low-temperature Capacitive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: High-temperature Resistant Capacitive Proximity Sensor | CG30 Pre-wired Shielded | CG30-20NO-ZAA-3A-H120, CG30-20NC-ZAA-3A-H120, CG30-20PO-ZAA-3A-H120, CG30-20PC-ZAA-3A-H120, CG30-20PS-ZAA-4A-H120, CG30-20NS-ZAA-4A-H120, CG30-20NO-ZAA-3A-H150, CG30-20NC-ZAA-3A-H150, CG30-20PO-ZAA-3A-H150, CG30-20PC-ZAA-3A-H150, CG30-20PS-ZAA-4A-H150, CG30-20NS-ZAA-4A-H150, CG30-20NO-ZAA-3A-H180, CG30-20NC-ZAA-3A-H180, CG30-20PO-ZAA-3A-H180, CG30-20PC-ZAA-3A-H180, CG30-20PS-ZAA-4A-H180, CG30-20NS-ZAA-4A-H180

Delivery clauses under the trade mode: CIP

update time: Tue, 04 Nov 2025 08:55:00 GMT

contact supplier

Paramtents

Size: Cylindrical M30
Detection range: 2-20mm Adjustable
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO / NC, PNP NO / NC, NPN NO&NC, PNP NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+120°C / -25℃ to +150℃ / -25℃ to +180℃

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 2-20mm Adjustable
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO / NC, PNP NO / NC, NPN NO&NC, PNP NO&NC

Detailed

High-temperature Resistant Capacitive Proximity Sensor Cylindrical M30 Pre-wired Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
CG30-20NO-ZAA-3A-H120	NPN NO	2-20mm Adjustable	2M	120mA	Shielded	10-30VDC	Nickel Plated Brass
CG30-20NC-ZAA-3A-H120	NPN NC
CG30-20PO-ZAA-3A-H120	PNP NO
CG30-20PC-ZAA-3A-H120	PNP NC
CG30-20PS-ZAA-4A-H120	PNP NO&NC
CG30-20NS-ZAA-4A-H120	NPN NO&NC

CG30-20NO-ZAA-3A-H150	NPN NO	2-20mm Adjustable	2M	100mA	Shielded	10-30VDC	Nickel Plated Brass
CG30-20NC-ZAA-3A-H150	NPN NC
CG30-20PO-ZAA-3A-H150	PNP NO
CG30-20PC-ZAA-3A-H150	PNP NC
CG30-20PS-ZAA-4A-H150	PNP NO&NC
CG30-20NS-ZAA-4A-H150	NPN NO&NC

CG30-20NO-ZAA-3A-H180	NPN NO	2-20mm Adjustable	2M	80mA	Shielded	10-30VDC	Nickel Plated Brass
CG30-20NC-ZAA-3A-H180	NPN NC
CG30-20PO-ZAA-3A-H180	PNP NO
CG30-20PC-ZAA-3A-H180	PNP NC
CG30-20PS-ZAA-4A-H180	PNP NO&NC
CG30-20NS-ZAA-4A-H180	NPN NO&NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	100HZ
Response time	1.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +120℃ / -25℃ to +150℃ / -25℃ to +180℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	120mA / 120mA / 80mA
Sensing surface material	PTFE

Data sheet

High-temperature Resistant and Low-temperature Resistant Capacitive Proximity Sensor Data sheet
