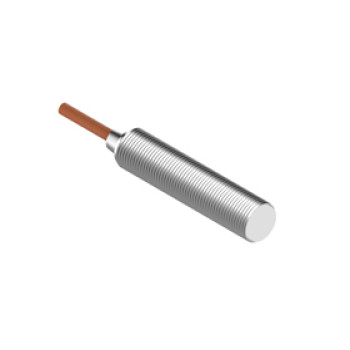

High-temperature Resistant Capacitive Proximity Sensor | Cylindrical M12 2M cable CG12 Pre-wired Shielded Non-Shielded | DADISICK
- group name
- High-temperature and Low-temperature Capacitive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- High-temperature Resistant Capacitive Proximity Sensor | CG12 Pre-wired Shielded Non-Shielded | CG12-03NO-ZAA-3A-H120, CG12-03NC-ZAA-3A-H120, CG12-03PO-ZAA-3A-H120, CG12-03PC-ZAA-3A-H120, CG12-06NO-ZBA-3A-H120, CG12-06NC-ZBA-3A-H120, CG12-06PO-ZBA-3A-H120, CG12-06PC-ZBA-3A-H120
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:40:55 GMT
Paramtents
Size: Cylindrical M12
Detection range: 1-3mm Adjustable / 1-6mm Adjustable
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC
Degree of protection: IP67
Operating temperature: -25°C~+120°C
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Shielded / Non-Shielded
Detection range: 1-3mm Adjustable / 1-6mm Adjustable
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC
Detection range: 1-3mm Adjustable / 1-6mm Adjustable
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC
Detailed
|
High-temperature Resistant Capacitive Proximity Sensor Cylindrical M8 Pre-wired Shielded Non-Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
CG12-03NO-ZAA-3A-H120 | NPN NO | 1-3mm Adjustable | 2M | 120mA | Shielded | 10-30VDC | Nickel Plated Brass | |
CG12-03NC-ZAA-3A-H120 | NPN NC | |||||||
CG12-03PO-ZAA-3A-H120 | PNP NO | |||||||
CG12-03PC-ZAA-3A-H120 | PNP NC | |||||||
CG12-06NO-ZBA-3A-H120 | NPN NO | 1-6mm Adjustable | 2M | 120mA | Non-Shielded | 10-30VDC | Nickel Plated Brass | |
CG12-06NC-ZBA-3A-H120 | NPN NC | |||||||
CG12-06PO-ZBA-3A-H120 | PNP NO | |||||||
CG12-06PC-ZBA-3A-H120 | PNP NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 100HZ | ||
Response time | 1.5ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +120℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 150mA | ||
Sensing surface material | PTFE | ||
