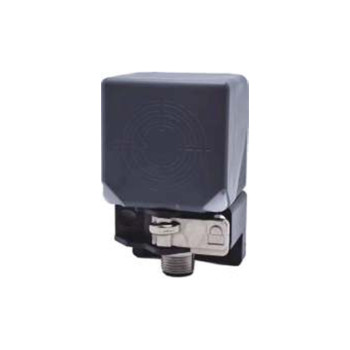

Square Inductive Proximity Sensor | Square Type 40x40mm M12 Connector LE40S Connector Non-shielded | DADISICK
- group name
- Square Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Square Inductive Proximity Sensor | LE40S Connector Non-shielded | LE40-20NO-YBA-TM-P, LE40-20NC-YBA-TM-P, LE40-20PO-YBA-TM-P, LE40-20PC-YBA-TM-P, LE40-20NS-YBA-TM-P, LE40-20PS-YBA-TM-P, LE40-20HO-YBD-TM-P, LE40-20HC-YBD-TM-P, LE40-30NO-YBA-TM-P, LE40-30NC-YBA-TM-P, LE40-30PO-YBA-TM-P, LE40-30PC-YBA-TM-P, LE40-30NS-YBA-TM-P, LE40-30PS-YBA-TM-P, LE40-30HO-YBD-TM-P, LE40-30HC-YBD-TM-P, LE40-40NO-YBA-TM-P, LE40-40NC-YBA-TM-P, LE40-40PO-YBA-TM-P, LE40-40PC-YBA-TM-P, LE40-40NS-YBA-TM-P, LE40-40PS-YBA-TM-P, LE40-40HO-YBD-TM-P, LE40-40HC-YBD-TM-P
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:54:49 GMT
Paramtents
Size: Square 40x40mm
Detection range: 20mm, 30mm, 40mm
Case material: PBT
Connection type: M12 Connector
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Non-shielded
Detection range: 20mm, 30mm, 40mm
Case material: PBT
Connection type: M12 Connector
Output method: NPN NO/NC, PNP NO/NC
Detection range: 20mm, 30mm, 40mm
Case material: PBT
Connection type: M12 Connector
Output method: NPN NO/NC, PNP NO/NC
Detailed
|
Square Inductive Proximity Sensor Square Type 40x40mm Connector Non-shielded Series Datasheet
|
||||||||||
|
Model
|
Output | Sensing distance | Switching frequency | Response time | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LE40-20NO-YBA-TM-P
| NPN,NO | 20mm | 500Hz | 0.5ms | M12 Connector | 200mA | Non-shielded | 10-30VDC | PBT | |
LE40-20NC-YBA-TM-P
| NPN,NC | |||||||||
LE40-20PO-YBA-TM-P
| PNP,NO | |||||||||
LE40-20PC-YBA-TM-P | PNP,NC | |||||||||
LE40-20NS-YBA-TM-P
| NPN NO&NC | |||||||||
LE40-20PS-YBA-TM-P
| PNP NO&NC | |||||||||
LE40-20HO-YBD-TM-P
| DC 2-wire NO | 10-60VDC | ||||||||
LE40-20HC-YBD-TM-P | DC 2-wire NC | |||||||||
LE40-30NO-YBA-TM-P | NPN,NO | 30mm | 300Hz | 10-30VDC | ||||||
LE40-30NC-YBA-TM-P | NPN,NC | |||||||||
LE40-30PO-YBA-TM-P
| PNP,NO | |||||||||
LE40-30PC-YBA-TM-P | PNP,NC | |||||||||
LE40-30NS-YBA-TM-P
| NPN NO&NC | |||||||||
LE40-30PS-YBA-TM-P | PNP NO&NC | |||||||||
LE40-30HO-YBD-TM-P
| DC 2-wire NO | 10-60VDC | ||||||||
LE40-30HC-YBD-TM-P | DC 2-wire NC | |||||||||
LE40-40NO-YBA-TM-P | NPN,NO | 40mm | 500Hz | 1ms | 10-30VDC | |||||
LE40-40NC-YBA-TM-P
| NPN,NC | |||||||||
LE40-40PO-YBA-TM-P | PNP,NO | |||||||||
LE40-40PC-YBA-TM-P | PNP,NC | |||||||||
LE40-40NS-YBA-TM-P | NPN NO&NC | |||||||||
LE40-40PS-YBA-TM-P | PNP NO&NC | |||||||||
LE40-40HO-YBD-TM-P
| DC 2-wire NO | 10-60VDC | ||||||||
LE40-40HC-YBD-TM-P | DC 2-wire NC | |||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%(Sr)
| ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection/reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PBT | ||
Data sheet
