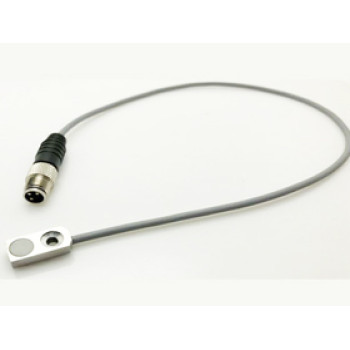

Square Inductive Proximity Sensor | Square Type 8x4.7mm 2 Meter Cable LE08 Pre-wired Shielded | DADISICK
- group name
- Square Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Square Inductive Proximity Sensor | LE08 Pre-wired Shielded | LE08-02NO-ZAA-3A-L, LE08-02NC-ZAA-3A-L, LE08-02LO-ZAA-3A-L, LE08-02LC-ZAA-3A-L
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:47:21 GMT
Paramtents
Size: Square 8x4.7mm
Detection range: 2mm
Case material: Aluminum Alloy
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Shielded
Detection range: 2mm
Case material: Aluminum Alloy
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Detection range: 2mm
Case material: Aluminum Alloy
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Detailed
|
Square Inductive Proximity Sensor Square Type 8x4.7mm Pre-wired Shielded Series Datasheet
|
||||||||||
|
Model
|
Output | Sensing distance | Switching frequency | Response time | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LE08-02NO-ZAA-3A-L
| NPN,NO | 2mm | 500Hz | 0.5ms | M8 2 Meter Cable | 200mA | Shielded | 10-30VDC | PBT | |
LE08-02NC-ZAA-3A-L | NPN,NC | |||||||||
LE08-02PO-ZAA-3A-L | PNP,NO | |||||||||
LE08-02PC-ZAA-3A-L | PNP,NC | |||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%(Sr)
| ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection/reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PBT | ||
