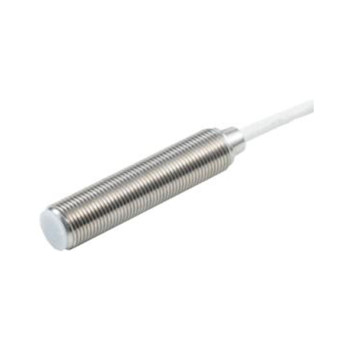

Low-temperature Resistant Inductive Proximity Sensor | Cylindrical M12 2M cable LZ12 Pre-wired Shielded | DADISICK

group name: High-temperature Resistant and Low-temperature Resistant Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Low-temperature Resistant Inductive Proximity Sensor | LZ12 Pre-wired Shielded | LZ12-02NO -ZAA -3A -H30, LZ12-02NC -ZAA -3A -H30, LZ12-02PO -ZAA -3A -H30, LZ12-02PC -ZAA -3A -H30, LZ12-02HO -ZAD -3A -H30, LZ12-02HC -ZAD -3A -H30, LZ12-04NO -ZAA -3A -H30, LZ12-04NC -ZAA -3A -H30, LZ12-04PO -ZAA -3A -H30, LZ12-04PC -ZAA -3A -H30, LZ12-04HO -ZAD -3A -H30, LZ12-04HC -ZAD -3A -H30, LZ12-02NO -ZAA -3A -H40, LZ12-02NC -ZAA -3A -H40, LZ12-02PO -ZAA -3A -H40, LZ12-02PC -ZAA -3A -H40, LZ12-02HO -ZAD -3A -H40, LZ12-02HC -ZAD -3A -H40, LZ12-04NO -ZAA -3A -H40, LZ12-04NC -ZAA -3A -H40, LZ12-04PO -ZAA -3A -H40, LZ12-04PC -ZAA -3A -H40, LZ12-04HO -ZAD -3A -H40, LZ12-04HC -ZAD -3A -H40

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 18:25:01 GMT

contact supplier

Paramtents

Size: Cylindrical M12
Detection range: 2mm-4mm
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC
Degree of protection: IP67
Operating temperature: -30℃ to +70℃ / -40℃ to +70℃

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 2mm-4mm
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC

Detailed

Low-temperature Resistant Inductive Proximity Sensor Cylindrical M12 Pre-wired Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LZ12-02NO -ZAA -3A -H30	NPN NO	2mm	2M	200mA	Shielded	10-30VDC	Nickel Plated Brass
LZ12-02NC -ZAA -3A -H30	NPN NC
LZ12-02PO -ZAA -3A -H30	PNP NO
LZ12-02PC -ZAA -3A -H30	PNP NC
LZ12-02HO -ZAD -3A -H30	NO					10-60VDC
LZ12-02HC -ZAD -3A -H30	NC
LZ12-04NO -ZAA -3A -H30	NPN NO	4mm				10-30VDC
LZ12-04NC -ZAA -3A -H30	NPN NC
LZ12-04PO -ZAA -3A -H30	PNP NO
LZ12-04PC -ZAA -3A -H30	PNP NC
LZ12-04HO -ZAD -3A -H30	NO					10-60VDC
LZ12-04HC -ZAD -3A -H30	NC

LZ12-02NO -ZAA -3A -H40	NPN NO	2mm	2M	200mA	Shielded	10-30VDC	Nickel Plated Brass
LZ12-02NC -ZAA -3A -H40	NPN NC
LZ12-02PO -ZAA -3A -H40	PNP NO
LZ12-02PC -ZAA -3A -H40	PNP NC
LZ12-02HO -ZAD -3A -H40	NO					10-60VDC
LZ12-02HC -ZAD -3A -H40	NC
LZ12-04NO -ZAA -3A -H40	NPN NO	4mm				10-30VDC
LZ12-04NC -ZAA -3A -H40	NPN NC
LZ12-04PO -ZAA -3A -H40	PNP NO
LZ12-04PC -ZAA -3A -H40	PNP NC
LZ12-04HO -ZAD -3A -H40	NO					10-60VDC
LZ12-04HC -ZAD -3A -H40	NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	1KHZ / 800HZ
Response time	0.1ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-30℃ to +70℃ / -40℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	POM

Data sheet

High-temperature Resistant and Low-temperature Resistant Inductive Proximity Sensor Datasheet
