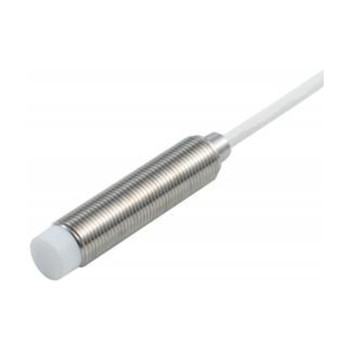

Low-temperature Resistant Inductive Proximity Sensor | Cylindrical M8 2M cable LZ08 Pre-wired Non-Shielded | DADISICK

group name: High-temperature Resistant and Low-temperature Resistant Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Low-temperature Resistant Inductive Proximity Sensor | LZ08 Pre-wired Non-Shielded | LZ08-02NO -ZBA -3A -H40, LZ08-02NC -ZBA -3A -H40, LZ08-02PO -ZBA -3A -H40, LZ08-02PC -ZBA -3A -H40, LZ08-02HO -ZBD -3A -H40, LZ08-02HC -ZBD -3A -H40, LZ08-04NO -ZBA -3A -H40, LZ08-04NC -ZBA -3A -H40, LZ08-04PO -ZBA -3A -H40, LZ08-04PC -ZBA -3A -H40, LZ08-04HO -ZBD -3A -H40, LZ08-04HC -ZBD -3A -H40

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 18:17:49 GMT

contact supplier

Paramtents

Size: Cylindrical M8
Detection range: 2mm-4mm
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC
Degree of protection: IP67
Operating temperature: -40°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Non-Shielded
Detection range: 2mm-4mm
Case material: Nickel Plated Brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC

Detailed

Low-temperature Resistant Inductive Proximity Sensor Cylindrical M8 Pre-wired Non-Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LZ08-02NO -ZBA -3A -H40	NPN NO	2mm	2M	200mA	Non-Shielded	10-30VDC	Nickel Plated Brass
LZ08-02NC -ZBA -3A -H40	NPN NC
LZ08-02PO -ZBA -3A -H40	PNP NO
LZ08-02PC -ZBA -3A -H40	PNP NC
LZ08-02HO -ZBD -3A -H40	NO					10-60VDC
LZ08-02HC -ZBD -3A -H40	NC
LZ08-04NO -ZBA -3A -H40	NPN NO	4mm				10-30VDC
LZ08-04NC -ZBA -3A -H40	NPN NC
LZ08-04PO -ZBA -3A -H40	PNP NO
LZ08-04PC -ZBA -3A -H40	PNP NC
LZ08-04HO -ZBD -3A -H40	NO					10-60VDC
LZ08-04HC -ZBD -3A -H40	NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	800HZ / 500HZ
Response time	0.2ms / 0.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-40℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PTFE

Data sheet

High-temperature Resistant and Low-temperature Resistant Inductive Proximity Sensor Datasheet
