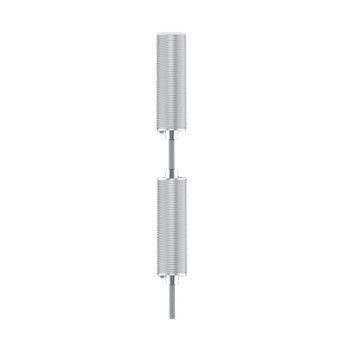

High-temperature Resistant Inductive Proximity Sensor | Cylindrical M18 Split Type 2M cable LG18 Pre-wired Shielded | DADISICK
- group name
- High-temperature Resistant and Low-temperature Resistant Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- High-temperature Resistant Inductive Proximity Sensor | LG18 Pre-wired Shielded | LG18-05NO-ZAA-3A-SS180, LG18-05NC-ZAA-3A-SS180, LG18-05PO-ZAA-3A-SS180, LG18-05PC-ZAA-3A-SS180, LG18-05PS-ZAA-4A-SS180, LG18-05NS-ZAA-4A-SS180
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:55:05 GMT
Paramtents
Size: Cylindrical M18
Detection range: 5mm
Case material: Sensor head: stainless steel Amplifier: nickel-pla
Connection type: 2M cable
Output method: NPN NO/ NC, PNP NO/ NC, PNP NC&NO, NPN NC&NO
Degree of protection: IP67
Operating temperature: -25°C~+180°C
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Shielded
Detection range: 5mm
Case material: Sensor head: stainless steel Amplifier: nickel-plated brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC, PNP NC&NO, NPN NC&NO
Detection range: 5mm
Case material: Sensor head: stainless steel Amplifier: nickel-plated brass
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC, PNP NC&NO, NPN NC&NO
Detailed
|
High-temperature Resistant Inductive Proximity Sensor Cylindrical M18 Split Type Pre-wired Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LG18-05NO-ZAA-3A-SS180 | NPN NO | 5mm | 2M | 80mA | Shielded | 10-30VDC | Sensor head: stainless steel Amplifier: nickel-plated brass | |
LG18-05NC-ZAA-3A-SS180 | NPN NC | |||||||
LG18-05PO-ZAA-3A-SS180 | PNP NO | |||||||
LG18-05PC-ZAA-3A-SS180 | PNP NC | |||||||
LG18-05PS-ZAA-4A-SS180 | PNP NC&NO | |||||||
LG18-05NS-ZAA-4A-SS180 | NPN NC&NO | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 100HZ | ||
Response time | 1.5ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +180℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 100mA | ||
Detection head material | PTFE | ||
Data sheet
