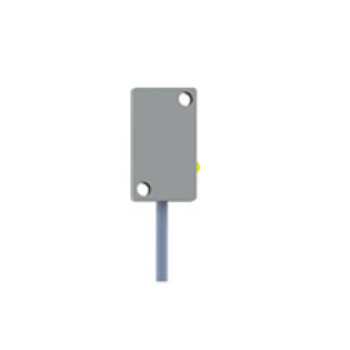

Square Inductive Proximity Sensor | LE16 Pre-wired Non-shielded Square Type 16x28x10mm 2 Meter Cable | DADISICK
- group name
- Square Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Square Inductive Proximity Sensor | LE16 Pre-wired Non-shielded | LE16-02NO-ZBA-3A-P, LE16-02NC-ZBA-3A-P, LE16-02PO-ZBA-3A-P, LE16-02PC-ZBA-3A-P, LE16-02NS-ZBA-4A-P, LE16-02PS-ZBA-4A-P, LE16-02HO-ZBD-2A-P, LE16-02HC-ZBD-2A-P, LE16-04NO-ZBA-3A-P, LE16-04NC-ZBA-3A-P, LE16-04PO-ZBA-3A-P, LE16-04PC-ZBA-3A-P, LE16-04NS-ZBA-4A-P, LE16-04PS-ZBA-4A-P, LE16-04HO-ZBD-2A-P, LE16-04HC-ZBD-2A-P, LE16-06NO-ZBA-3A-P, LE16-06NC-ZBA-3A-P, LE16-06PO-ZBA-3A-P, LE16-06PC-ZBA-3A-P, LE16-06NS-ZBA-4A-P, LE16-06PS-ZBA-4A-P, LE16-06HO-ZBD-2A-P, LE16-06HC-ZBD-2A-P
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:16:11 GMT
Paramtents
Size: Square 16x28x10mm
Detection range: 2mm, 4mm, 6mm
Case material: PBT
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Non-shielded
Detection range: 2mm, 4mm, 6mm
Case material: PBT
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Detection range: 2mm, 4mm, 6mm
Case material: PBT
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Detailed
|
Square Inductive Proximity Sensor Square Type 16x28x10mm Pre-wired Non-shielded Series Datasheet
|
||||||||||
|
Model
|
Output | Operating voltage | Sensing distance | Switching frequency | Response time | Connection | Maximum load current | Mounting | Case material |
|
LE16-02NO-ZBA-3A-P | NPN,NO | 10-30VDC | 2mm | 2KHz | 0.1ms | 2 Meter Cable | 200mA | Non-shielded | PBT | |
LE16-02NC-ZBA-3A-P | NPN,NC | |||||||||
LE16-02PO-ZBA-3A-P | PNP,NO | |||||||||
LE16-02PC-ZBA-3A-P | PNP,NC | |||||||||
LE16-02NS-ZBA-4A-P
| NPN NO&NC | |||||||||
LE16-02PS-ZBA-4A-P | PNP NO&NC | |||||||||
LE16-02HO-ZBD-2A-P | DC 2-wire NO | 10-60VDC | ||||||||
LE16-02HC-ZBD-2A-P
| DC 2-wire NC | |||||||||
LE16-04NO-ZBA-3A-P | NPN,NO | 10-30VDC | 4mm | 1KHz | 0.2ms | |||||
LE16-04NC-ZBA-3A-P | NPN,NC | |||||||||
LE16-04PO-ZBA-3A-P | PNP,NO | |||||||||
LE16-04PC-ZBA-3A-P | PNP,NC | |||||||||
LE16-04NS-ZBA-4A-P
| NPN NO&NC | |||||||||
LE16-04PS-ZBA-4A-P | PNP NO&NC | |||||||||
LE16-04HO-ZBD-2A-P | DC 2-wire NO | 10-60VDC | ||||||||
LE16-04HC-ZBD-2A-P
| DC 2-wire NC | |||||||||
LE16-06NO-ZBA-3A-P | NPN NO | 10-30VDC | 6mm | 500Hz | 0.5ms | |||||
LE16-06NC-ZBA-3A-P | NPN NC | |||||||||
LE16-06PO-ZBA-3A-P | PNP NO | |||||||||
LE16-06PC-ZBA-3A-P | PNP NC | |||||||||
LE16-06NS-ZBA-4A-P | NPN NO&NC | |||||||||
LE16-06PS-ZBA-4A-P | PNP NO&NC | |||||||||
LE16-06HO-ZBD-2A-P | DC 2-wire NO | 10-60VDC | ||||||||
LE16-06HC-ZBD-2A-P | DC 2-wire NC | |||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <2.0v | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection/reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PBT | ||
Data sheet
