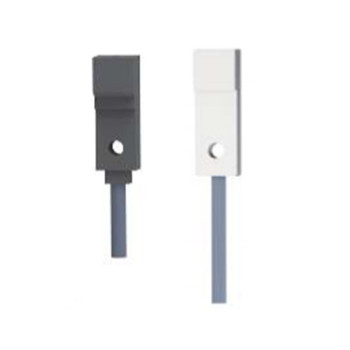

Square Inductive Proximity Sensor | LE88 Pre-wired Non-shielded Square Type 8x8mm PBT/Aluminum Alloy Shell 2 Meter Cable | DADISICK
- group name
- Square Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Square Inductive Proximity Sensor | LE88 Pre-wired Non-shielded | LE88-2.5NO-ZBA-3A-PT, LE88-2.5NC-ZBA-3A-PT, LE88-2.5PO-ZBA-3A-PT, LE88-2.5PC-ZBA-3A-PT, LE88-2.5NO-ZBA-3A-PF, LE88-2.5NC-ZBA-3A-PF, LE88-2.5PO-ZBA-3A-PF, LE88-2.5PC-ZBA-3A-PF, LE88-2.5NO-ZBA-3A-LT, LE88-2.5NC-ZBA-3A-LT, LE88-2.5PO-ZBA-3A-LT, LE88-2.5PC-ZBA-3A-LT, LE88-2.5NO-ZBA-3A-LF, LE88-2.5NC-ZBA-3A-LF, LE88-2.5PO-ZBA-3A-LF, LE88-2.5PC-ZBA-3A-LF
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:45:02 GMT
Paramtents
Size: Square 8x8mm
Detection range: 2.5mm
Case material: PBT/Aluminum Alloy
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Non-shielded
Detection range: 2.5mm
Case material: PBT/Aluminum Alloy
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Detection range: 2.5mm
Case material: PBT/Aluminum Alloy
Connection type: 2 Meter Cable
Output method: NPN NO/NC, PNP NO/NC
Detailed
|
Square Inductive Proximity Sensor Square Type 8x8mm Pre-wired Non-shielded PBT/Aluminum Alloy Shell Series Datasheet
|
||||||||||
|
Model
|
Output | Sensing distance | Switching frequency | Response time | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LE88-2.5NO-ZBA-3A-PT | NPN,NO | 2.5mm | 500Hz | 0.5ms | 2 Meter Cable | 100mA | Non-shielded | 10-30VDC | PBT | |
LE88-2.5NC-ZBA-3A-PT
| NPN,NC | |||||||||
LE88-2.5PO-ZBA-3A-PT | PNP,NO | |||||||||
LE88-2.5PC-ZBA-3A-PT | PNP,NC | |||||||||
LE88-2.5NO-ZBA-3A-PF | NPN,NO | |||||||||
LE88-2.5NC-ZBA-3A-PF | NPN,NC | |||||||||
LE88-2.5PO-ZBA-3A-PF | PNP,NO | |||||||||
LE88-2.5PC-ZBA-3A-PF | PNP,NC | |||||||||
LE88-2.5NO-ZBA-3A-LT | NPN,NO | Aluminum Alloy | ||||||||
LE88-2.5NC-ZBA-3A-LT
| NPN,NC | |||||||||
LE88-2.5PO-ZBA-3A-LT
| PNP,NO | |||||||||
LE88-2.5PC-ZBA-3A-LT
| PNP,NC | |||||||||
LE88-2.5NO-ZBA-3A-LF
| NPN,NO | |||||||||
LE88-2.5NC-ZBA-3A-LF | NPN,NC | |||||||||
LE88-2.5PO-ZBA-3A-LF | PNP,NO | |||||||||
LE88-2.5PC-ZBA-3A-LF | PNP,NC | |||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <0.04mm
| ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection/reverse polarity protection | Yes | ||
Overload protection | 120mA | ||
Sensing surface material | PBT | ||
Data sheet
