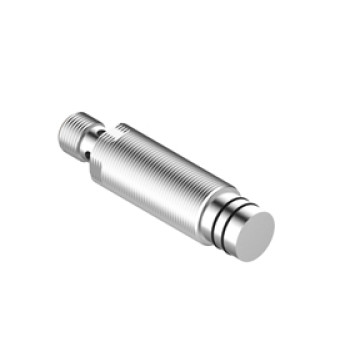

Inductive Proximity Sensor | LP18 Connector Shielded Cylindrical M18 M12 Connector | DADISICK
- group name
- High-pressure Resistant Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- High-Pressure Resistant Inductive Proximity Sensor | LP18 Connector Shielded Cylindrical M18 | LP18-03NO-YAA-TA-S70, LP18-03NC-YAA-TA-S70, LP18-03PO-YAA-TA-S70, LP18-03PC-YAA-TA-S70, LP18-03HO-YAD-TA-S70, LP18-03HC-YAD-TA-S70, LP18-03NO-YAA-TA-S79, LP18-03NC-YAA-TA-S79, LP18-03PO-YAA-TA-S79, LP18-03PC-YAA-TA-S79, LP18-03HO-YAD-TA-S79, LP18-03HC-YAD-TA-S79
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:54:45 GMT
Paramtents
Size: Cylindrical M18
Detection range: 3mm
Case material: Stainless steel
Connection type: M12 Connector
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC
Degree of protection: IP67, IP69K
Operating temperature: -25°C~+70°C
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Shielded
Detection range: 3mm
Case material: Stainless steel
Connection type: M12 Connector
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC
Detection range: 3mm
Case material: Stainless steel
Connection type: M12 Connector
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC
Detailed
High-Pressure Resistant Inductive Proximity Sensor Cylindrical M18 Connector Shielded Series Datasheet |
||||||||
Model | Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
Appearance length |
LP18-03NO-YAA-TA-S70 | NPN NO | 1.5mm | 2M | 200mA
| Shielded | 10-30VDC | Stainless steel | 56mm |
LP18-03NC-YAA-TA-S70 | NPN NC | |||||||
LP18-03PO-YAA-TA-S70 | PNP NO | |||||||
LP18-03PC-YAA-TA-S70 | PNP NC | |||||||
LP18-03HO-YAD-TA-S70 | NO | 10-60VDC | ||||||
LP18-03HC-YAD-TA-S70 | NC | |||||||
LP18-03NO-YAA-TA-S79 | NPN NO | 10-30VDC | 69mm | |||||
LP18-03NC-YAA-TA-S79 | NPN NC | |||||||
LP18-03PO-YAA-TA-S79 | PNP NO | |||||||
LP18-03PC-YAA-TA-S79 | PNP NC | |||||||
LP18-03HO-YAD-TA-S79 | NO | 10-60VDC | ||||||
LP18-03HC-YAD-TA-S79 | NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 1KHZ | ||
Response time | 0.2ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67, IP69K | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | Ceramics | ||
