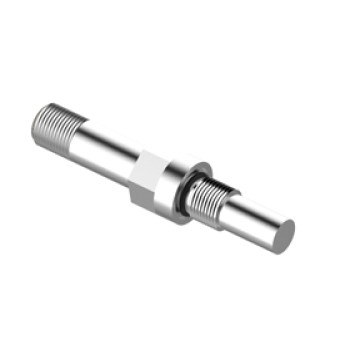

Inductive Proximity Sensor | LP12 Connector Standard Shielded Cylindrical M12 M12 Connector | DADISICK

group name: High-Pressure Resistant Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: High-Pressure Resistant Inductive Proximity Sensor | LP12 Connector Shielded Cylindrical M12 | LP12-02NO-YAA-TA-S, LP12-02NC-YAA-TA-S, LP12-02PO-YAA-TA-S, LP12-02PC-YAA-TA-S, LP12-02HO-YAD-TA-S, LP12-02HC-YAD-TA-S

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:26:45 GMT

contact supplier

Paramtents

Size: Cylindrical M12
Detection range: 2mm
Case material: Stainless steel
Connection type: M12 Connector
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC
Degree of protection: IP67, IP69K
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 2mm
Case material: Stainless steel
Connection type: M12 Connector
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC

Detailed

High-Pressure Resistant Inductive Proximity Sensor Cylindrical M12 Connector Standard Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LP12-02NO-YAA-TA-S	NPN NO	2mm	M12 Connector	200mA	Shielded	10-30VDC	Stainless steel
LP12-02NC-YAA-TA-S	NPN NC
LP12-02PO-YAA-TA-S	PNP NO
LP12-02PC-YAA-TA-S	PNP NC
LP12-02HO-YAD-TA-S	NO					10-60VDC
LP12-02HC-YAD-TA-S	NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	1KHZ
Response time	0.2ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67, IP69K
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	Ceramics

Data sheet

High-Pressure Resistant Inductive Proximity Sensor Datasheet
