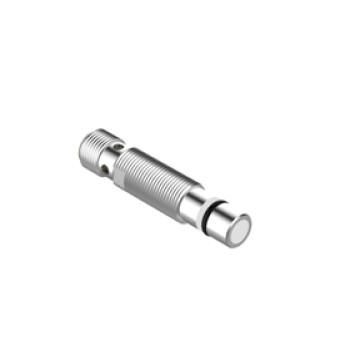

Inductive Proximity Sensor | LP12 Connector Shielded Cylindrical M12 M12 Connector | DADISICK

group name: High-Pressure Resistant Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: High-Pressure Resistant Inductive Proximity Sensor | LP12 Connector Shielded Cylindrical M12 | LP12-1.5NO-YAA-TA-S56, LP12-1.5NC-YAA-TA-S56, LP12-1.5PO-YAA-TA-S56, LP12-1.5PC-YAA-TA-S56, LP12-1.5HO-YAD-TA-S56, LP12-1.5HC-YAD-TA-S56, LP12-1.5NO-YAA-TA-S69, LP12-1.5NC-YAA-TA-S69, LP12-1.5PO-YAA-TA-S69, LP12-1.5PC-YAA-TA-S69, LP12-1.5HO-YAD-TA-S69, LP12-1.5HC-YAD-TA-S69, LP12-1.5NO-YAA-TA-S78, LP12-1.5NC-YAA-TA-S78, LP12-1.5PO-YAA-TA-S78, LP12-1.5PC-YAA-TA-S78, LP12-1.5HO-YAD-TA-S78, LP12-1.5HC-YAD-TA-S78, LP12-1.5NO-YAA-TA-S94, LP12-1.5NC-YAA-TA-S94, LP12-1.5PO-YAA-TA-S94, LP12-1.5PC-YAA-TA-S94, LP12-1.5HO-YAD-TA-S94, LP12-1.5HC-YAD-TA-S94, LP12-1.5NO-YAA-TA-S138, LP12-1.5NC-YAA-TA-S138, LP12-1.5PO-YAA-TA-S138, LP12-1.5PC-YAA-TA-S138, LP12-1.5HO-YAD-TA-S138, LP12-1.5HC-YAD-TA-S138

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 03:22:27 GMT

contact supplier

Paramtents

Size: Cylindrical M12
Detection range: 1.5mm
Case material: Stainless steel
Connection type: M12 Connector
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC
Degree of protection: IP67, IP69K
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 1.5mm
Case material: Stainless steel
Connection type: M12 Connector
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC

Detailed

High-Pressure Resistant Inductive Proximity Sensor Cylindrical M12 Connector Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material	Appearance length
LP12-1.5NO-YAA-TA-S56	NPN NO	1.5mm	2M	200mA	Shielded	10-30VDC	Stainless steel	56mm
LP12-1.5NC-YAA-TA-S56	NPN NC
LP12-1.5PO-YAA-TA-S56	PNP NO
LP12-1.5PC-YAA-TA-S56	PNP NC
LP12-1.5HO-YAD-TA-S56	NO					10-60VDC
LP12-1.5HC-YAD-TA-S56	NC					10-60VDC
LP12-1.5NO-YAA-TA-S69	NPN NO					10-30VDC		69mm
LP12-1.5NC-YAA-TA-S69	NPN NC
LP12-1.5PO-YAA-TA-S69	PNP NO
LP12-1.5PC-YAA-TA-S69	PNP NC
LP12-1.5HO-YAD-TA-S69	NO					10-60VDC
LP12-1.5HC-YAD-TA-S69	NC					10-60VDC
LP12-1.5NO-YAA-TA-S78	NPN NO					10-30VDC		78mm
LP12-1.5NC-YAA-TA-S78	NPN NC
LP12-1.5PO-YAA-TA-S78	PNP NO
LP12-1.5PC-YAA-TA-S78	PNP NC
LP12-1.5HO-YAD-TA-S78	NO					10-60VDC
LP12-1.5HC-YAD-TA-S78	NC					10-60VDC
LP12-1.5NO-YAA-TA-S94	NPN NO					10-30VDC		94mm
LP12-1.5NC-YAA-TA-S94	NPN NC
LP12-1.5PO-YAA-TA-S94	PNP NO
LP12-1.5PC-YAA-TA-S94	PNP NC
LP12-1.5HO-YAD-TA-S94	NO					10-60VDC
LP12-1.5HC-YAD-TA-S94	NC					10-60VDC
LP12-1.5NO-YAA-TA-S138	NPN NO					10-30VDC		138mm
LP12-1.5NC-YAA-TA-S138	NPN NC
LP12-1.5PO-YAA-TA-S138	PNP NO
LP12-1.5PC-YAA-TA-S138	PNP NC
LP12-1.5HO-YAD-TA-S138	NO					10-60VDC
LP12-1.5HC-YAD-TA-S138	NC					10-60VDC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	1KHZ
Response time	0.2ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67, IP69K
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	Ceramics

Data sheet

High-Pressure Resistant Inductive Proximity Sensor Datasheet
