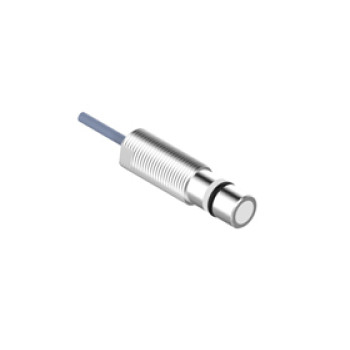

Inductive Proximity Sensor | LP12 Pre-wired Shielded Cylindrical M12 2M cable | DADISICK

group name: High-pressure Resistant Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: High-Pressure Resistant Inductive Proximity Sensor | LP12 Pre-wired Shielded Cylindrical M12 | LP12-1.5NO-ZAA-3A-S43, LP12-1.5NC-ZAA-3A-S43, LP12-1.5PO-ZAA-3A-S43, LP12-1.5PC-ZAA-3A-S43, LP12-1.5HO-ZAD-3A-S43, LP12-1.5HC-ZAD-3A-S43, LP12-1.5NO-ZAA-3A-S47, LP12-1.5NC-ZAA-3A-S47, LP12-1.5PO-ZAA-3A-S47, LP12-1.5PC-ZAA-3A-S47, LP12-1.5HO-ZAD-2A-S47, LP12-1.5HC-ZAD-2A-S47, LP12-1.5NO-ZAA-3A-S50, LP12-1.5NC-ZAA-3A-S50, LP12-1.5PO-ZAA-3A-S50, LP12-1.5PC-ZAA-3A-S50, LP12-1.5HO-ZAD-2A-S50, LP12-1.5HC-ZAD-2A-S50, LP12-1.5NO-ZAA-3A-S55, LP12-1.5NC-ZAA-3A-S55, LP12-1.5PO-ZAA-3A-S55, LP12-1.5PC-ZAA-3A-S55, LP12-1.5HO-ZAD-2A-S55, LP12-1.5HC-ZAD-2A-S55, LP12-1.5NO-ZAA-3A-S56, LP12-1.5NC-ZAA-3A-S56, LP12-1.5PO-ZAA-3A-S56, LP12-1.5PC-ZAA-3A-S56, LP12-1.5HO-ZAD-2A-S56, LP12-1.5HC-ZAD-2A-S56, LP12-1.5NO-ZAA-3A-S78, LP12-1.5NC-ZAA-3A-S78, LP12-1.5PO-ZAA-3A-S78, LP12-1.5PC-ZAA-3A-S78, LP12-1.5HO-ZAD-2A-S78, LP12-1.5HC-ZAD-2A-S78

Delivery clauses under the trade mode: CIP

update time: Tue, 04 Nov 2025 15:04:27 GMT

contact supplier

Paramtents

Size: Cylindrical M12
Detection range: 1.5mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC
Degree of protection: IP67, IP69K
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 1.5mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NO, NPN NC, PNP NO, PNP NC , NO, NC

Detailed

High-Pressure Resistant Inductive Proximity Sensor Cylindrical M12 Pre-wired Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material	Appearance length
LP12-1.5NO-ZAA-3A-S43	NPN NO	1.5mm	2M	200mA	Shielded	10-30VDC	Stainless steel	43mm
LP12-1.5NC-ZAA-3A-S43	NPN NC
LP12-1.5PO-ZAA-3A-S43	PNP NO
LP12-1.5PC-ZAA-3A-S43	PNP NC
LP12-1.5HO-ZAD-3A-S43	NO					10-60VDC
LP12-1.5HC-ZAD-3A-S43	NC					10-60VDC
LP12-1.5NO-ZAA-3A-S47	NPN NO					10-30VDC		47mm
LP12-1.5NC-ZAA-3A-S47	NPN NC
LP12-1.5PO-ZAA-3A-S47	PNP NO
LP12-1.5PC-ZAA-3A-S47	PNP NC
LP12-1.5HO-ZAD-2A-S47	NO					10-60VDC
LP12-1.5HC-ZAD-2A-S47	NC					10-60VDC
LP12-1.5NO-ZAA-3A-S50	NPN NO					10-30VDC		50mm
LP12-1.5NC-ZAA-3A-S50	NPN NC
LP12-1.5PO-ZAA-3A-S50	PNP NO
LP12-1.5PC-ZAA-3A-S50	PNP NC
LP12-1.5HO-ZAD-2A-S50	NO					10-60VDC
LP12-1.5HC-ZAD-2A-S50	NC					10-60VDC
LP12-1.5NO-ZAA-3A-S55	NPN NO					10-30VDC		55mm
LP12-1.5NC-ZAA-3A-S55	NPN NC
LP12-1.5PO-ZAA-3A-S55	PNP NO
LP12-1.5PC-ZAA-3A-S55	PNP NC
LP12-1.5HO-ZAD-2A-S55	NO					10-60VDC
LP12-1.5HC-ZAD-2A-S55	NC					10-60VDC
LP12-1.5NO-ZAA-3A-S56	NPN NO					10-30VDC		56mm
LP12-1.5NC-ZAA-3A-S56	NPN NC
LP12-1.5PO-ZAA-3A-S56	PNP NO
LP12-1.5PC-ZAA-3A-S56	PNP NC
LP12-1.5HO-ZAD-2A-S56	NO					10-60VDC
LP12-1.5HC-ZAD-2A-S56	NC					10-60VDC
LP12-1.5NO-ZAA-3A-S78	NPN NO					10-30VDC		78mm
LP12-1.5NC-ZAA-3A-S78	NPN NC
LP12-1.5PO-ZAA-3A-S78	PNP NO
LP12-1.5PC-ZAA-3A-S78	PNP NC
LP12-1.5HO-ZAD-2A-S78	NO					10-60VDC
LP12-1.5HC-ZAD-2A-S78	NC					10-60VDC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	1KHZ
Response time	0.2ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67, IP69K
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	Ceramics

Data sheet

High-Pressure Resistant Inductive Proximity Sensor Datasheet
