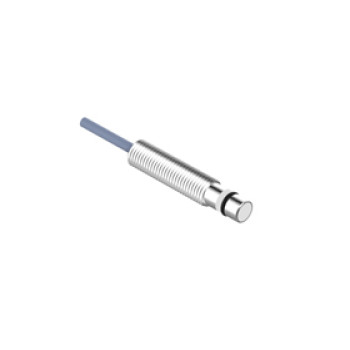

Inductive Proximity Sensor | LP08 Pre-wired Shielded Cylindrical M8 2M cable | DADISICK

group name: High-Pressure Resistant Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: High-Pressure Resistant Inductive Proximity Sensor | LP08 Pre-wired Shielded Cylindrical M8 | LP08-01NO-ZAA-3A-S, LP08-01NC-ZAA-3A-S, LP08-01PO-ZAA-3A-S， LP08-01PC-ZAA-3A-S

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 04:39:27 GMT

contact supplier

Paramtents

Size: Cylindrical M8
Detection range: 1mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NO，NPN NC, PNP NO, PNP NC
Degree of protection: IP67, IP69K
Operating temperature: -25°C~+70°C

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 1mm
Case material: Stainless steel
Connection type: 2M cable
Output method: NPN NO，NPN NC, PNP NO, PNP NC

Detailed

High-Pressure Resistant Inductive Proximity Sensor Cylindrical M8 Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LP08-01NO-ZAA-3A-S	NPN NO	1mm	2M	200mA	Shielded	10-30VDC	Stainless steel
LP08-01NC-ZAA-3A-S	NPN NC
LP08-01PO-ZAA-3A-S	PNP NO
LP08-01PC-ZAA-3A-S	PNP NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	1KHZ
Response time	0.2ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67, IP69K
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	Ceramics

Data sheet

High-Pressure Resistant Inductive Proximity Sensor Datasheet
