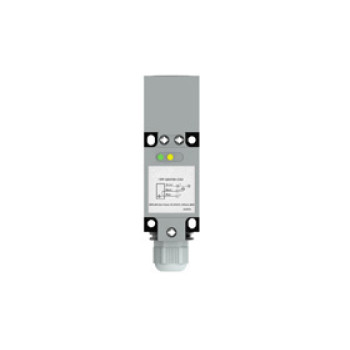

Inductive Proximity Sensor | DC/AC Type | LE40 Pre-wired Non-shielded Square Type 40x40mm Quick Connector | DADISICK
- group name
- Standard Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Standard Inductive Proximity Sensor | LE40 Pre-wired Non-shielded Square Type 40x40mm | LE40-20TO-ZBH-3A-P, LE40-20TC-ZBH-3A-P, LE40-20TS-ZBH-4A-P, LE40-30TO-ZBH-3A-P, LE40-30TC-ZBH-3A-P, LE40-30TS-ZBH-4A-P
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 09:55:56 GMT
Paramtents
Size: Square Type 40x40mm
Detection range: 20mm, 30mm
Case material: PBT
Connection type: Quick Connector
Output method: NC/NO, NO&NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Non-shielded
Detection range: 20mm, 30mm
Case material: PBT
Connection type: Quick Connector
Output method: NC/NO, NO&NC
Detection range: 20mm, 30mm
Case material: PBT
Connection type: Quick Connector
Output method: NC/NO, NO&NC
Detailed
|
Inductive Proximity Sensor DC/AC Type Square Type 40x40mm Pre-wired Non-shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LE40-20TO-ZBH-3A-P | NO | 20mm | Quick Connector | 200mA | Non-shielded | 20-250VAC / 20-250VDC | PBT | |
LE40-20TC-ZBH-3A-P | NC | |||||||
LE40-20TS-ZBH-4A-P
| NO&NC | |||||||
LE40-30TO-ZBH-3A-P | NO | 30mm | ||||||
LE40-30TC-ZBH-3A-P
| NC | |||||||
LE40-30TS-ZBH-4A-P | NO&NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
No-load current
|
<2.5mA
|
||
Leakage Current | <2.5mA | ||
Surge current | 2.2A for 20ms
| ||
Minimum load current
| 5mA | ||
Voltage drop | <10VAC; 8VDC | ||
Switching frequency
| 25HZ AC;40HZ DC | ||
Response time | 10ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection | Yes | ||
Sensing surface material | PBT | ||
