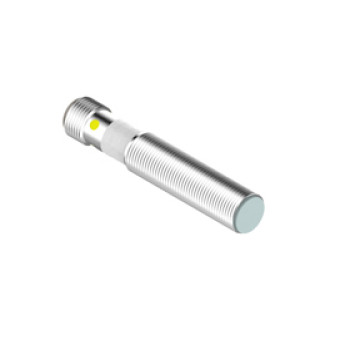

Inductive Proximity Sensor | DC/AC Type | LR12 Connector Shielded Cylindrical M12 M12 Connector | DADISICK
- group name
- Standard Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Standard Inductive Proximity Sensor | LR12 Connector Shielded Cylindrical M12 | LR12-02TO-YAH-TA-H, LR12-02TC-YAH-TA-H, LR12-04TO-YAH-TA-H, LR12-04TC-YAH-TA-H
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 10:19:29 GMT
Paramtents
Size: Cylindrical M12
Detection range: 2mm, 4mm
Case material: Nickel-plated brass
Connection type: M12 Connector
Output method: NC/NO
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Shielded
Detection range: 2mm, 4mm
Case material: Nickel-plated brass
Connection type: M12 Connector
Output method: NC/NO
Detection range: 2mm, 4mm
Case material: Nickel-plated brass
Connection type: M12 Connector
Output method: NC/NO
Detailed
|
Inductive Proximity Sensor DC/AC Type Cylindrical M12 Connector Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LR12-02TO-YAH-TA-H
| NO | 2mm | M12 Connector | 100mA | Shielded | 20-250VAC / 20-250VDC | Nickel-plated brass | |
LR12-02TC-YAH-TA-H
| NC | |||||||
LR12-04TO-YAH-TA-H | NO | 4mm | ||||||
LR12-04TC-YAH-TA-H | NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
No-load current
|
<2.5mA
|
||
Leakage Current | <2.5mA | ||
Surge current | 2.2A for 20ms | ||
Minimum load current
| 5mA | ||
Voltage drop | <10VAC; 8VDC | ||
Switching frequency
| 25HZ AC; 40HZ DC | ||
Response time | 10ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Short circuit protection | No | ||
Sensing surface material | PBT | ||
