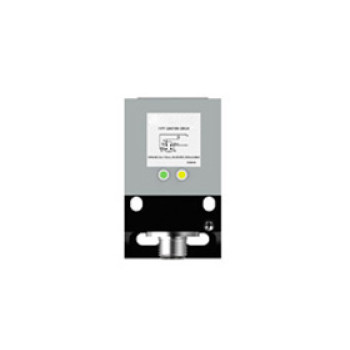

Analog Inductive Proximity Sensor | LA40 Connector Shielded Square Type 40x40mm M12 Connector | DADISICK
- group name
- Analog Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Analog Inductive Proximity Sensor | LA40 Connector Shielded | LA40-15I-YAE-TM-P, LA40-20I-YAE-TM-P, LA40-15U-YAE-TM-P, LA40-20U-YAE-TM-P, LA40-15V-YAE-TM-P, LA40-15I-ZAE-3A-P, LA40-15U-YAE-3A-P
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:22:28 GMT
Paramtents
Size: Square Type 40x40mm
Detection range: 5-20mm
Case material: PBT
Connection type: M12 Connector
Output method: 4-20mA, 0-10V, 4-20mA/0-10V
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 5-20mm
Case material: PBT
Connection type: M12 Connector
Output method: 4-20mA, 0-10V, 4-20mA/0-10V
Case material: PBT
Connection type: M12 Connector
Output method: 4-20mA, 0-10V, 4-20mA/0-10V
Detailed
|
Analog Inductive Proximity Sensor Square Type 40x40mm Connector Shielded Series Datasheet
|
|||||||||
|
Model
|
Output | Linearity | Temperature drift | Sensing distance | Connection | Mounting | Operating voltage | Case material |
|
LA40-15I-YAE-TM-P | 4-20mA | <10% (Sr) | 5% (Sr) | 5-15 mm | M12 Connector | Shielded | 18-30VDC | PBT | |
LA40-20I-YAE-TM-P | 5-20 mm | ||||||||
LA40-15U-YAE-TM-P | 0-10V | 5-15 mm | |||||||
LA40-20U-YAE-TM-P | 5-20 mm | ||||||||
LA40-15V-YAE-TM-P | 4-20mA/0-10V | <5% (Sr) | 5-15 mm | ||||||
LA40-15U-YAE-3A-P | 0-10V | 5% (Sr) | 5-15 mm | ||||||
|
Electrical data
|
|||
|
LED display
|
No
|
||
|
Maximum allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<35mA
|
||
Repeat accuracy | 0.02mm | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Short circuit protection | - | ||
Reverse polarity protection | Yes | ||
Output signal | PNP-ANALOG | ||
Maximum switching frequency | 1500Hz | ||
Sensing surface material | PBT | ||
Data sheet
