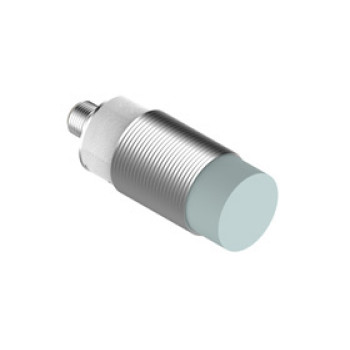

Analog Inductive Proximity Sensor | LA30 Connector Non-shielded Cylindrical M30 M12 Connector | DADISICK
- group name
- Analog Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Analog Inductive Proximity Sensor | LA30 Connector Non-shielded | LA30-14I-YBE-TA-H, LA30-25I-YBE-TA-H, LA30-40I-YBE-TA-H, LA30-14U-YBE-TA-H, LA30-25U-YBE-TA-H, LA30-40U-YBE-TA-H, LA30-14V-YBE-TA-H, LA30-25V-YBE-TA-H, LA30-40V-YBE-TA-H
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:24:33 GMT
Paramtents
Size: Cylindrical M30
Detection range: 1-40mm
Case material: Nickel-plated brass
Connection type: M12 Connector
Output method: 4-20mA, 0-10V, 4-20mA/0-10V
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 1-40mm
Case material: Nickel-plated brass
Connection type: M12 Connector
Output method: 4-20mA, 0-10V, 4-20mA/0-10V
Case material: Nickel-plated brass
Connection type: M12 Connector
Output method: 4-20mA, 0-10V, 4-20mA/0-10V
Detailed
|
Analog Inductive Proximity Sensor Cylindrical M30 Connector Non-shielded Series Datasheet
|
|||||||||
|
Model
|
Output | Linearity | Temperature drift | Sensing distance | Connection | Mounting | Operating voltage | Case material |
|
LA30-14I-YBE-TA-H | 4-20mA | <10% (Sr) | 5% (Sr) | 5-14 mm | M12 Connector | Non-shielded | 18-30VDC | Nickel-plated brass | |
LA30-25I-YBE-TA-H | 5-25 mm | ||||||||
LA30-40I-YBE-TA-H | 17-40 mm | ||||||||
LA30-14U-YBE-TA-H | 0-10V | <10% (Sr) | 5% (Sr) | 7-14 mm | |||||
LA30-25U-YBE-TA-H | 5-25 mm | ||||||||
LA30-40U-YBE-TA-H | 17-40 mm | ||||||||
LA30-14V-YBE-TA-H | 4-20mA/0-10V | <10% (Sr) | <5% (Sr) | 7-14 mm | |||||
LA30-25V-YBE-TA-H | 7-25 mm | ||||||||
LA30-40V-YBE-TA-H | 17-40 mm | ||||||||
|
Electrical data
|
|||
|
LED display
|
No
|
||
|
Maximum allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<35mA
|
||
Repeat accuracy | 0.02mm | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Short circuit protection | - | ||
Reverse polarity protection | Yes | ||
Output signal | PNP-ANALOG | ||
Maximum switching frequency | 500Hz | ||
Sensing surface material | PBT | ||
