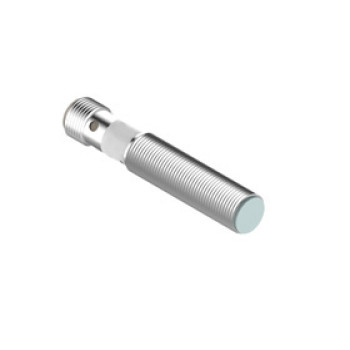

Analog Inductive Proximity Sensor | LA12 Connector Shielded Cylindrical M12 M12 Connector | DADISICK
- group name
- Analog Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Analog Inductive Proximity Sensor | LA12 Connector Shielded | LA12-03I-YAE-TA-H, LA12-04I-YAE-TA-H, LA12-06I-YAE-TA-H, LA12-03U-YAE-TA-H, LA12-04U-YAE-TA-H, LA12-06U-YAE-TA-H, LA12-03V-YAE-TA-H, LA12-04V-YAE-TA-H, LA12-06V-YAE-TA-H, LA12-08V-YBE-TA-H
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:53:15 GMT
Paramtents
Size: Cylindrical M12
Detection range: 0.1-6mm
Case material: Nickel-plated brass
Connection type: M12 Connector
Output method: 4-20mA, 0-10V, 4-20mA/0-10V
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 0.1-6mm
Case material: Nickel-plated brass
Connection type: M12 Connector
Output method: 4-20mA, 0-10V, 4-20mA/0-10V
Case material: Nickel-plated brass
Connection type: M12 Connector
Output method: 4-20mA, 0-10V, 4-20mA/0-10V
Detailed
|
Analog Inductive Proximity Sensor Cylindrical M12 Connector Shielded Series Datasheet
|
|||||||||
|
Model
|
Output | Linearity | Temperature drift | Sensing distance | Connection | Mounting | Operating voltage | Case material |
|
LA12-03I-YAE-TA-H | 4-20mA | <5% (Sr) | <5% (Sr) | 0.1-3 mm | M12 Connector | Shielded | 18-30VDC | Nickel-plated brass | |
LA12-04I-YAE-TA-H | 0.5-4 mm | ||||||||
LA12-06I-YAE-TA-H | 5% (Sr) | 0.5-6 mm | |||||||
LA12-03U-YAE-TA-H | 0-10V | 0.1-3 mm | |||||||
LA12-04U-YAE-TA-H | 0.5-4 mm | ||||||||
LA12-06U-YAE-TA-H | 0.5-6 mm | ||||||||
LA12-03V-YAE-TA-H | 4-20mA/0-10V | <10% (Sr) | <5% (Sr) | 0.5-3 mm | |||||
LA12-04V-YAE-TA-H | 0.5-4 mm | ||||||||
LA12-06V-YAE-TA-H | 0.1-6 mm | ||||||||
|
Electrical data
|
|||
|
LED display
|
No
|
||
|
Maximum allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<35mA
|
||
Repeat accuracy | 0.02mm | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Short circuit protection | - | ||
Reverse polarity protection | Yes | ||
Output signal | PNP-ANALOG | ||
Maximum switching frequency | 1500Hz | ||
Sensing surface material | PBT | ||
