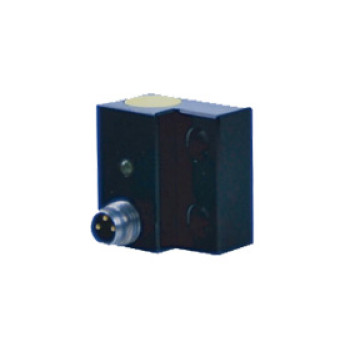

Limit Inductive Proximity Sensor | LC26 Connector Shielded Square 26mm M8 Connector | DADISICK
- group name
- Limit Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Limit Inductive Proximity Sensor | LC26 Connector Shielded | LC26-01NO-YAA-EA-L, LC26-01NC-YAA-EA-L, LC26-01PO-YAA-EA-L, LC26-01PC-YAA-EA-L
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:45:05 GMT
Paramtents
Size: 26x25x15mm
Detection range: 1mm
Case material: Aluminum Alloy
Connection type: M8 Connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 1mm
Case material: Aluminum Alloy
Connection type: 3X0.34 Single core cable
Output method: NPN NO/NC，PNP NO/NC
Case material: Aluminum Alloy
Connection type: 3X0.34 Single core cable
Output method: NPN NO/NC，PNP NO/NC
Detailed
|
Limit Inductive Proximity Sensor Square 26mm Connector Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LC26-01NO-YAA-EA-L
| NPN,NO | 1mm | M8 Connector | 200mA | Shielded | 10-30VDC | Aluminum Alloy | |
LC26-01NC-YAA-EA-L
| NPN,NC | |||||||
LC26-01PO-YAA-EA-L
| PNP,NO | |||||||
LC26-01PC-YAA-EA-L
| PNP,NC | |||||||
|
Electrical data
|
|||
|
LED display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 1000Hz | ||
Response time | 0.1ms | ||
Switching hysteresis | <2%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PBT | ||
Data sheet
