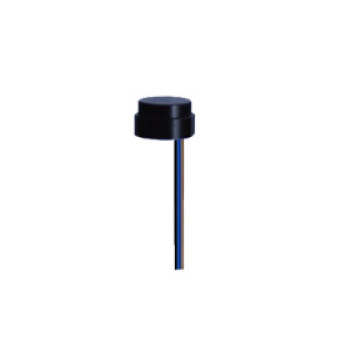

Limit Inductive Proximity Sensor | LC18 Pre-wired Non-shielded Cylindrical M18 Single Core Cable | DADISICK
- group name
- Limit Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Limit Inductive Proximity Sensor | LC18 Pre-wired Non-shielded | LC18-08NO-ZBA-3R-P, LC18-08NC-ZBA-3R-P, LC18-08PO-ZBA-3R-P, LC18-08PC-ZBA-3R-P
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 03:26:45 GMT
Paramtents
Size: Cylindrical M18
Detection range: 8mm
Case material: POM
Connection type: 3X0.34 Single core cable
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 8mm
Case material: POM
Connection type: 3X0.34 Single core cable
Output method: NPN NO/NC，PNP NO/NC
Case material: POM
Connection type: 3X0.34 Single core cable
Output method: NPN NO/NC，PNP NO/NC
Detailed
|
Limit Inductive Proximity Sensor M18 Pre-wired Non-shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LC18-08NO-ZBA-3R-P
| NPN,NO | 8mm | 3X0.34 Single core cable
| 200mA | Non-shielded | 10-30VDC | POM | |
LC18-08NC-ZBA-3R-P
| NPN,NC | |||||||
LC18-08PO-ZBA-3R-P | PNP,NO | |||||||
LC18-08PC-ZBA-3R-P
| PNP,NC | |||||||
|
Electrical data
|
|||
|
LED display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 500Hz | ||
Response time | 1ms | ||
Switching hysteresis | <5%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | POM | ||
Data sheet
