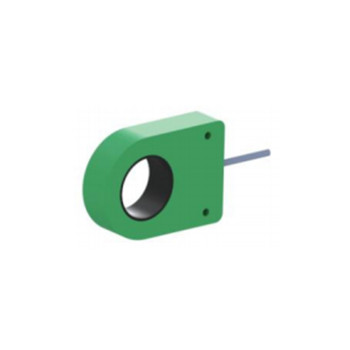

Ring Inductive Proximity Sensor | Time-delay Static Mode | LI35, LI50, LI75, LI100 Pre-wired Inner Hole DiameterInner 35, 50, 75, 100mm | DADISICK
- group name
- Ring Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Ring Inductive Proximity Sensor | LI35, LI50, LI75, LI100 Pre-wired | LI35-20NO-ZBA-3A-PT, LI35-20NC-ZBA-3A-PT, LI35-20PO-ZBA-3A-PT, LI35-20PC-ZBA-3A-PT, LI50-20NO-ZBA-3A-PT, LI50-20NC-ZBA-3A-PT, LI50-20PO-ZBA-3A-PT, LI50-20PC-ZBA-3A-PT, LI75-20NO-ZBA-3A-PT, LI75-20NC-ZBA-3A-PT, LI75-20PO-ZBA-3A-PT, LI75-20PC-ZBA-3A-PT, LI100-20NO-ZBA-3A-PT, LI100-20NC-ZBA-3A-PT, LI100-20PO-ZBA-3A-PT, LI100-20PC-ZBA-3A-PT
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 04:50:50 GMT
Paramtents
Inner Hole DiameterInner: 35, 50, 75, 100mm
Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Detailed
Ring Inductive Proximity Sensor Time-delay Static Mode Pre-wired Series Datasheet |
|||||||||||
Model |
Output | Connection | Inner hole diameter | Sensing distance | Maximum load current | Mounting | Operating voltage | Case material |
|||
LI35 Pre-wired | LI35-20NO-ZBA-3A-PT | NPN NO | 2 M cable | 35mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI35-20NC-ZBA-3A-PT
| NPN NC | ||||||||||
LI35-20PO-ZBA-3A-PT
| PNP NO | ||||||||||
LI35-20PC-ZBA-3A-PT
| PNP NC | ||||||||||
LI50 Pre-wired | LI50-20NO-ZBA-3A-PT | NPN NO | 2 M cable | 50mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI50-20NC-ZBA-3A-PT
| NPN NC | ||||||||||
LI50-20PO-ZBA-3A-PT
| PNP NO | ||||||||||
LI50-20PC-ZBA-3A-PT
| PNP NC | ||||||||||
LI75 Pre-wired | LI75-20NO-ZBA-3A-PT
| NPN NO | 2 M cable | 75mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI75-20NC-ZBA-3A-PT
| NPN NC | ||||||||||
LI75-20PO-ZBA-3A-PT
| PNP NO | ||||||||||
LI75-20PC-ZBA-3A-PT
| PNP NC | ||||||||||
LI100 Pre-wired | LI100-20NO-ZBA-3A-PT | NPN NO | 2 M cable | 100mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI100-20NC-ZBA-3A-PT
| NPN NC | ||||||||||
LI100-20PO-ZBA-3A-PT
| PNP NO | ||||||||||
LI100-20PC-ZBA-3A-PT
| PNP NC | ||||||||||
|
Electrical data
|
|||||
|
LED display
|
Yes
|
||||
|
Allowable ripple voltage
|
<10%
|
||||
Minimum interval time of the object to be detected | 0.1ms | ||||
|
No-load current
|
<10mA
|
||||
Leakage current | <0.01mA | ||||
Adjustable pulse width time
| 0.1-200ms
| ||||
Response time | 0.1ms | ||||
Voltage drop | <1.5v at 200mA | ||||
Switching frequency | 2KHZ | ||||
Adjustable sensitivity | Yes | ||||
Switching hysteresis | 15% | ||||
Repeat accuracy | <2%（Sr） | ||||
Degree of protection | IP67 | ||||
Operating temperature | -25℃ to +70℃ | ||||
Temperature drift | ±10%（Sr） | ||||
Minimum detection object | D=3mm;L=6mm (Inner hole diameter 35mm), D=4mm;L=7mm (Inner hole diameter 50mm), D=6mm;L=12mm (Inner hole diameter 75mm, 100mm) | ||||
Fastest passing speed
| 40m/s | ||||
Load short-circuit protection / reverse polarity protection | Yes | ||||
Overload protection | 220mA | ||||
