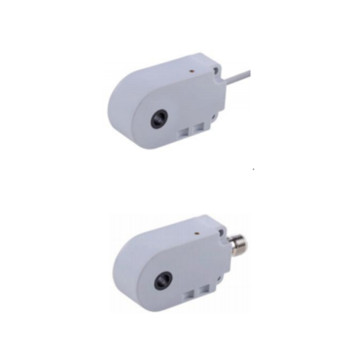

Ring Inductive Proximity Sensor | Time-delay Static Mode | LI09, LI10, LI12, LI14, LI15 Pre-wired and Connector Inner Hole DiameterInner 9, 10, 12, 14, 15mm | DADISICK
- group name
- Ring Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Ring Inductive Proximity Sensor | LI09, LI10, LI12, LI14, LI15 Pre-wired and Connector | LI09-20NS-ZBA-4A-PT, LI09-20PS-ZBA-4A-PT, LI10-20NS-ZBA-4A-PT, LI10-20PS-ZBA-4A-PT, LI10-20NS-YBA-TA-PT, LI10-20PS-YBA-TA-PT, LI12-20NS-ZBA-4A-PT, LI12-20PS-ZBA-4A-PT, LI12-20NS-YBA-TA-PT, LI12-20PS-YBA-TA-PT, LI14-20NS-ZBA-4A-PT, LI14-20PS-ZBA-4A-PT, LI14-20NS-YBA-TA-PT, LI14-20PS-YBA-TA-PT, LI15-20NS-ZBA-4A-PT, LI15-20PS-ZBA-4A-PT, LI15-20NS-YBA-TA-PT, LI15-20PS-YBA-TA-PT
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:45:42 GMT
Paramtents
Inner Hole DiameterInner: 9, 10, 12, 14, 15mm
Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Detailed
Ring Inductive Proximity Sensor Time-delay Static Mode Pre-wired and Connector Series Datasheet |
|||||||||||
Model |
Output | Connection | Inner hole diameter | Sensing distance | Maximum load current | Mounting | Operating voltage | Case material |
|||
LI09 Pre-wired | LI09-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 9mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI09-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI09 Connector | LI09-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI09-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
LI10 Pre-wired | LI10-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 10mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI10-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI10 Connector | LI10-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI10-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
LI12 Pre-wired | LI12-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 12mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI12-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI12 Connector | LI12-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI12-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
LI14 Pre-wired | LI14-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 14mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI14-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI14 Connector | LI14-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI14-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
LI15 Pre-wired | LI15-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 15mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI15-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI15 Connector | LI15-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI15-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
|
Electrical data
|
|||||
|
LED display
|
Yes
|
||||
|
Allowable ripple voltage
|
<10%
|
||||
Minimum interval time of the object to be detected | 0.1ms | ||||
|
No-load current
|
<10mA
|
||||
Leakage current | <0.01mA | ||||
Adjustable pulse width time
| 0.1-200ms
| ||||
Response time | 0.1ms | ||||
Voltage drop | <1.5v at 200mA | ||||
Switching frequency | 2KHZ | ||||
Adjustable sensitivity | Yes | ||||
Switching hysteresis | 15% | ||||
Repeat accuracy | <2%（Sr） | ||||
Degree of protection | IP67 | ||||
Operating temperature | -25℃ to +70℃ | ||||
Temperature drift | ±10%（Sr） | ||||
Minimum detection object | D=2.5mm;L=4mm (Inner hole diameter 9mm, 10mm), D=2.7mm;L=5mm (Inner hole diameter 12mm, 14mm), D=3mm;L=6mm (Inner hole diameter 15mm) | ||||
Fastest passing speed
| 40m/s | ||||
Load short-circuit protection / reverse polarity protection | Yes | ||||
Overload protection | 220mA | ||||
