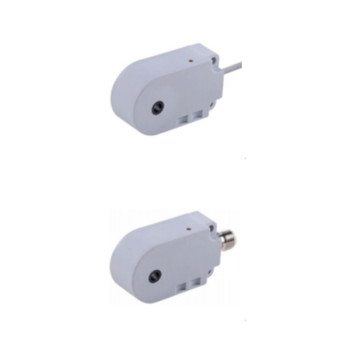

Ring Inductive Proximity Sensor | Time-delay Static Mode | LI03, LI04, LI05, LI06, LI08 Pre-wired and Connector Inner Hole DiameterInner 3, 4, 5, 6, 8mm | DADISICK
- group name
- Ring Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Ring Inductive Proximity Sensor | LI03, LI04, LI05, LI06, LI08 Pre-wired and Connector | LI03-20NS-ZBA-4A-PT, LI03-20PS-ZBA-4A-PT, LI03-20PS-YBA-TA-PT, LI03-20NS-YBA-TA-PT, LI04-20NS-ZBA-4A-PT, LI04-20PS-ZBA-4A-PT, LI04-20NS-YBA-TA-PT, LI04-20PS-YBA-TA-PT, LI05-20NS-ZBA-4A-PT, LI05-20PS-ZBA-4A-PT, LI05-20NS-YBA-TA-PT, LI05-20PS-YBA-TA-PT, LI06-20NS-ZBA-4A-PT, LI06-20PS-ZBA-4A-PT, LI06-20NS-YBA-TA-PT, LI06-20PS-YBA-TA-PT, LI08-20NS-ZBA-4A-PT, LI08-20PS-ZBA-4A-PT, LI08-20NS-YBA-TA-PT, LI08-20PS-YBA-TA-PT
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 04:17:08 GMT
Paramtents
Inner Hole DiameterInner: 3, 4, 5, 6, 8mm
Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC
Detailed
Ring Inductive Proximity Sensor Time-delay Static Mode Pre-wired and Connector Series Datasheet |
|||||||||||
Model |
Output | Connection | Inner hole diameter | Sensing distance | Maximum load current | Mounting | Operating voltage | Case material |
|||
LI03 Pre-wired | LI03-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 3mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI03-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI03 Connector | LI03-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI03-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
LI04 Pre-wired | LI04-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 4mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI04-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI04 Connector | LI04-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI04-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
LI05 Pre-wired | LI05-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 5mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI05-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI05 Connector | LI05-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI05-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
LI06 Pre-wired | LI06-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 6mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI06-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI06 Connector | LI06-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI06-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
LI08 Pre-wired | LI08-20NS-ZBA-4A-PT | NPN NO+NC | 2 M cable | 8mm | 20mm | 200mA | Non-shielded | 10-30VDC | PBT | ||
LI08-20PS-ZBA-4A-PT
| PNP NO+NC | ||||||||||
LI08 Connector | LI08-20NS-YBA-TA-PT
| NPN NO+NC | M12 connector | ||||||||
LI08-20PS-YBA-TA-PT
| PNP NO+NC | ||||||||||
|
Electrical data
|
|||||
|
LED display
|
Yes
|
||||
|
Allowable ripple voltage
|
<10%
|
||||
Minimum interval time of the object to be detected | 0.1ms | ||||
|
No-load current
|
<10mA
|
||||
Leakage current | <0.01mA | ||||
Adjustable pulse width time
| 0.1-200ms
| ||||
Response time | 0.1ms | ||||
Voltage drop | <1.5v at 200mA | ||||
Switching frequency | 2KHZ | ||||
Adjustable sensitivity | Yes | ||||
Switching hysteresis | 15% | ||||
Repeat accuracy | <2%（Sr） | ||||
Degree of protection | IP67 | ||||
Operating temperature | -25℃ to +70℃ | ||||
Temperature drift | ±10%（Sr） | ||||
Minimum detection object | D=1mm;L=2mm (Inner hole diameter 3mm), D=2mm;L=2mm (Inner hole diameter 4mm, 5mm, 6mm), D=2mm;L=3mm (Inner hole diameter 8mm) | ||||
Fastest passing speed
| 40m/s | ||||
Load short-circuit protection / reverse polarity protection | Yes | ||||
Overload protection | 220mA | ||||
