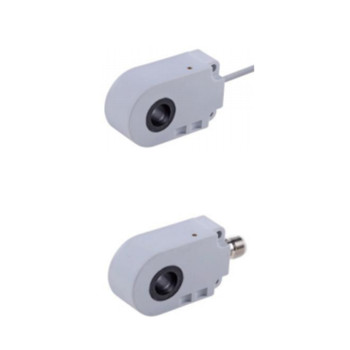

Ring Inductive Proximity Sensor | Metal Pass Type | LI16, LI17, LI21, LI22, LI25 Pre-wired and Connector Inner Hole DiameterInner 16, 17, 21, 22, 25mm | DADISICK

Ring Inductive Proximity Sensor | Metal Pass Type | LI16, LI17, LI21, LI22, LI25 Pre-wired and Connector Inner Hole DiameterInner 16, 17, 21, 22, 25mm | DADISICK
group name
Ring Inductive Proximity Sensor
Min Order
1 piece
brand name
DADISICK
model
Ring Inductive Proximity Sensor | LI16, LI17, LI21, LI22, LI25 Pre-wired and Connector | LI16-20NO-ZBA-3A-P, LI16-20NC-ZBA-3A-P, LI16-20PO-ZBA-3A-P, LI16-20PC-ZBA-3A-P, LI16-20NS-ZBA-4A-P, LI16-20PS-ZBA-4A-P, LI16-20NO-YBA-TA-P, LI16-20NC-YBA-TA-P, LI16-20PO-YBA-TA-P, LI16-20PC-YBA-TA-P, LI16-20NS-YBA-TA-P, LI16-20PS-YBA-TA-P, LI17-20NO-ZBA-3A-P, LI17-20NC-ZBA-3A-P, LI17-20PO-ZBA-3A-P, LI17-20PC-ZBA-3A-P, LI17-20NS-ZBA-4A-P, LI17-20PS-ZBA-4A-P, LI17-20NO-YBA-TA-P, LI17-20NC-YBA-TA-P, LI17-20PO-YBA-TA-P, LI17-20PC-YBA-TA-P, LI17-20NS-YBA-TA-P, LI17-20PS-YBA-TA-P, LI21-20NO-ZBA-3A-P, LI21-20NC-ZBA-3A-P, LI21-20PO-ZBA-3A-P, LI21-20PC-ZBA-3A-P, LI21-20NS-ZBA-4A-P, LI21-20PS-ZBA-4A-P, LI21-20NO-YBA-TA-P, LI21-20NC-YBA-TA-P, LI21-20PO-YBA-TA-P, LI21-20PC-YBA-TA-P, LI21-20NS-YBA-TA-P, LI21-20PS-YBA-TA-P, LI22-20NO-ZBA-3A-P, LI22-20NC-ZBA-3A-P, LI22-20PO-ZBA-3A-P, LI22-20PC-ZBA-3A-P, LI22-20NS-ZBA-4A-P, LI22-20PS-ZBA-4A-P, LI22-20NO-YBA-TA-P, LI22-20NC-YBA-TA-P, LI22-20PO-YBA-TA-P, LI22-20PC-YBA-TA-P, LI22-20NS-YBA-TA-P, LI22-20PS-YBA-TA-P, LI25-20NO-ZBA-3A-P, LI25-20NC-ZBA-3A-P, LI25-20PO-ZBA-3A-P, LI25-20PC-ZBA-3A-P, LI25-20NS-ZBA-4A-P, LI25-20PS-ZBA-4A-P, LI25-20NO-YBA-TA-P, LI25-20NC-YBA-TA-P, LI25-20PO-YBA-TA-P, LI25-20PC-YBA-TA-P, LI25-20NS-YBA-TA-P, LI25-20PS-YBA-TA-P
Delivery clauses under the trade mode
CIP
update time
Sun, 27 Apr 2025 04:55:28 GMT
contact supplier

Paramtents

  • Inner Hole DiameterInner: 16, 17, 21, 22, 25mm

  • Detection range: 20mm

  • Case material: PBT

  • Connection type: 2M Cable, M12 Connector

  • Output method: NPN NO/NC，PNP NO/NC

  • Degree of protection: IP67

  • Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

  • Min Order1 piece

Briefing

Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Ring Inductive Proximity Sensor Metal Pass Type Pre-wired and Connector Series Datasheet
Model
Output
Connection
Inner hole diameter
Sensing distance
Maximum load current
Mounting
Operating voltage
Case material
LI16 Pre-wired
LI16-20NO-ZBA-3A-P
NPN,NO
2 M cable
16mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI16-20NC-ZBA-3A-P
NPN,NC
LI16-20PO-ZBA-3A-P
PNP,NO
LI16-20PC-ZBA-3A-P
PNP,NC
LI16-20NS-ZBA-4A-P
NPN NO+NC
LI16-20PS-ZBA-4A-P
PNP NO+NC
LI16 Connector
LI16-20NO-YBA-TA-P
NPN,NO
M12 connector
LI16-20NC-YBA-TA-P
NPN,NC
LI16-20PO-YBA-TA-P
PNP,NO
LI16-20PC-YBA-TA-P
PNP,NC
LI16-20NS-YBA-TA-P
NPN NO+NC
LI16-20PS-YBA-TA-P
PNP NO+NC
LI17 Pre-wired
LI17-20NO-ZBA-3A-P
NPN,NO
2 M cable
17mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI17-20NC-ZBA-3A-P
NPN,NC
LI17-20PO-ZBA-3A-P
PNP,NO
LI17-20PC-ZBA-3A-P
PNP,NC
LI17-20NS-ZBA-4A-P
NPN NO+NC
LI17-20PS-ZBA-4A-P
PNP NO+NC
LI17 Connector
LI17-20NO-YBA-TA-P
NPN,NO
M12 connector
LI17-20NC-YBA-TA-P
NPN,NC
LI17-20PO-YBA-TA-P
PNP,NO
LI17-20PC-YBA-TA-P
PNP,NC
LI17-20NS-YBA-TA-P
NPN NO+NC
LI17-20PS-YBA-TA-P
PNP NO+NC
LI21 Pre-wired
LI21-20NO-ZBA-3A-P
NPN,NO
2 M cable
21mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI21-20NC-ZBA-3A-P
NPN,NC
LI21-20PO-ZBA-3A-P
PNP,NO
LI21-20PC-ZBA-3A-P
PNP,NC
LI21-20NS-ZBA-4A-P
NPN NO+NC
LI21-20PS-ZBA-4A-P
PNP NO+NC
LI21 Connector
LI21-20NO-YBA-TA-P
NPN,NO
M12 connector
LI21-20NC-YBA-TA-P
NPN,NC
LI21-20PO-YBA-TA-P
PNP,NO
LI21-20PC-YBA-TA-P
PNP,NC
LI21-20NS-YBA-TA-P
NPN NO+NC
LI21-20PS-YBA-TA-P
PNP NO+NC
LI22 Pre-wired
LI22-20NO-ZBA-3A-P
NPN,NO
2 M cable
22mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI22-20NC-ZBA-3A-P
NPN,NC
LI22-20PO-ZBA-3A-P
PNP,NO
LI22-20PC-ZBA-3A-P
PNP,NC
LI22-20NS-ZBA-4A-P
NPN NO+NC
LI22-20PS-ZBA-4A-P
PNP NO+NC
LI22 Connector
LI22-20NO-YBA-TA-P
NPN,NO
M12 connector
LI22-20NC-YBA-TA-P
NPN,NC
LI22-20PO-YBA-TA-P
PNP,NO
LI22-20PC-YBA-TA-P
PNP,NC
LI22-20NS-YBA-TA-P
NPN NO+NC
LI22-20PS-YBA-TA-P
PNP NO+NC
LI25 Pre-wired
LI25-20NO-ZBA-3A-P
NPN,NO
2 M cable
25mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI25-20NC-ZBA-3A-P
NPN,NC
LI25-20PO-ZBA-3A-P
PNP,NO
LI25-20PC-ZBA-3A-P
PNP,NC
LI25-20NS-ZBA-4A-P
NPN NO+NC
LI25-20PS-ZBA-4A-P
PNP NO+NC
LI25 Connector
LI25-20NO-YBA-TA-P
NPN,NO
M12 connector
LI25-20NC-YBA-TA-P
NPN,NC
LI25-20PO-YBA-TA-P
PNP,NO
LI25-20PC-YBA-TA-P
PNP,NC
LI25-20NS-YBA-TA-P
NPN NO+NC
LI25-20PS-YBA-TA-P
PNP NO+NC
Electrical data
LED display
Yes
Allowable ripple voltage
<10%
Minimum interval time of the object to be detected
0.2ms
No-load current
<10mA
Leakage current
<0.01mA
Voltage drop
<1.5v at 200mA
Switching frequency
2KHZ
Pulse impedance
1KV
Switching hysteresis
15%
Repeat accuracy
<2%（Sr）
Degree of protection
IP67
Operating temperature
-25℃ to +70℃
Temperature drift
±10%（Sr）
Minimum detection object
D=3mm;L=6mm (Inner hole diameter 16mm), D=4mm;L=7mm (Inner hole diameter 17mm), D=6mm;L=12mm (Inner hole diameter 21mm, 22mm), D=7mm;L=13mm (Inner hole diameter 25mm)
Load short-circuit protection / reverse polarity protection
Yes
Overload protection
220mA
Data sheet
Ring Inductive Proximity Sensor Data Sheet
