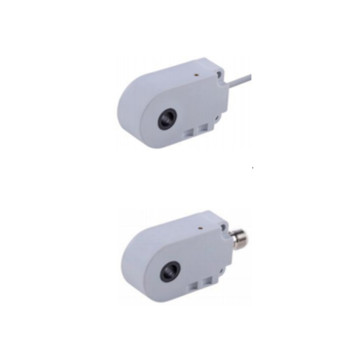

Ring Inductive Proximity Sensor | Metal Pass Type | LI09, LI10, LI12, LI14, LI15 Pre-wired and Connector Inner Hole DiameterInner 9, 10, 12, 14, 15mm | DADISICK

Ring Inductive Proximity Sensor | Metal Pass Type | LI09, LI10, LI12, LI14, LI15 Pre-wired and Connector Inner Hole DiameterInner 9, 10, 12, 14, 15mm | DADISICK
group name
Ring Inductive Proximity Sensor
Min Order
1 piece
brand name
DADISICK
model
Ring Inductive Proximity Sensor | LI09, LI10, LI12, LI14, LI15 Pre-wired and Connector | LI09-20NO-ZBA-3A-P, LI09-20NC-ZBA-3A-P, LI09-20PO-ZBA-3A-P, LI09-20PC-ZBA-3A-P, LI09-20NS-ZBA-4A-P, LI09-20PS-ZBA-4A-P, LI09-20NO-YBA-TA-P, LI09-20NC-YBA-TA-P, LI09-20PO-YBA-TA-P, LI09-20PC-YBA-TA-P, LI09-20NS-YBA-TA-P, LI09-20PS-YBA-TA-P, LI10-20NO-ZBA-3A-P, LI10-20NC-ZBA-3A-P, LI10-20PO-ZBA-3A-P, LI10-20PC-ZBA-3A-P, LI10-20NS-ZBA-4A-P, LI10-20PS-ZBA-4A-P, LI10-20NO-YBA-TA-P, LI10-20NC-YBA-TA-P, LI10-20PO-YBA-TA-P, LI10-20PC-YBA-TA-P, LI10-20NS-YBA-TA-P, LI10-20PS-YBA-TA-P, LI12-20NO-ZBA-3A-P, LI12-20NC-ZBA-3A-P, LI12-20PO-ZBA-3A-P, LI12-20PC-ZBA-3A-P, LI12-20NS-ZBA-4A-P, LI12-20PS-ZBA-4A-P, LI12-20NO-YBA-TA-P, LI12-20NC-YBA-TA-P, LI12-20PO-YBA-TA-P, LI12-20PC-YBA-TA-P, LI12-20NS-YBA-TA-P, LI12-20PS-YBA-TA-P, LI14-20NO-ZBA-3A-P, LI14-20NC-ZBA-3A-P, LI14-20PO-ZBA-3A-P, LI14-20PC-ZBA-3A-P, LI14-20NS-ZBA-4A-P, LI14-20PS-ZBA-4A-P, LI14-20NO-YBA-TA-P, LI14-20NC-YBA-TA-P, LI14-20PO-YBA-TA-P, LI14-20PC-YBA-TA-P, LI14-20NS-YBA-TA-P, LI14-20PS-YBA-TA-P, LI15-20NO-ZBA-3A-P, LI15-20NC-ZBA-3A-P, LI15-20PO-ZBA-3A-P, LI15-20PC-ZBA-3A-P, LI15-20NS-ZBA-4A-P, LI15-20PS-ZBA-4A-P, LI15-20NO-YBA-TA-P, LI15-20NC-YBA-TA-P, LI15-20PO-YBA-TA-P, LI15-20PC-YBA-TA-P, LI15-20NS-YBA-TA-P, LI15-20PS-YBA-TA-P
Delivery clauses under the trade mode
CIP
update time
Sun, 27 Apr 2025 04:50:51 GMT
contact supplier

Paramtents

  • Inner Hole DiameterInner: 9, 10, 12, 14, 15mm

  • Detection range: 20mm

  • Case material: PBT

  • Connection type: 2M Cable, M12 Connector

  • Output method: NPN NO/NC，PNP NO/NC

  • Degree of protection: IP67

  • Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

  • Min Order1 piece

Briefing

Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Ring Inductive Proximity Sensor Metal Pass Type Pre-wired and Connector Series Datasheet
Model
Output
Connection
Inner hole diameter
Sensing distance
Maximum load current
Mounting
Operating voltage
Case material
LI09 Pre-wired
LI09-20NO-ZBA-3A-P
NPN,NO
2 M cable
9mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI09-20NC-ZBA-3A-P
NPN,NC
LI09-20PO-ZBA-3A-P
PNP,NO
LI09-20PC-ZBA-3A-P
PNP,NC
LI09-20NS-ZBA-4A-P
NPN NO+NC
LI09-20PS-ZBA-4A-P
PNP NO+NC
LI09 Connector
LI09-20NO-YBA-TA-P
NPN,NO
M12 connector
LI09-20NC-YBA-TA-P
NPN,NC
LI09-20PO-YBA-TA-P
PNP,NO
LI09-20PC-YBA-TA-P
PNP,NC
LI09-20NS-YBA-TA-P
NPN NO+NC
LI09-20PS-YBA-TA-P
PNP NO+NC
LI10 Pre-wired
LI10-20NO-ZBA-3A-P
NPN,NO
2 M cable
10mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI10-20NC-ZBA-3A-P
NPN,NC
LI10-20PO-ZBA-3A-P
PNP,NO
LI10-20PC-ZBA-3A-P
PNP,NC
LI10-20NS-ZBA-4A-P
NPN NO+NC
LI10-20PS-ZBA-4A-P
PNP NO+NC
LI10 Connector
LI10-20NO-YBA-TA-P
NPN,NO
M12 connector
LI10-20NC-YBA-TA-P
NPN,NC
LI10-20PO-YBA-TA-P
PNP,NO
LI10-20PC-YBA-TA-P
PNP,NC
LI10-20NS-YBA-TA-P
NPN NO+NC
LI10-20PS-YBA-TA-P
PNP NO+NC
LI12 Pre-wired
LI12-20NO-ZBA-3A-P
NPN,NO
2 M cable
12mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI12-20NC-ZBA-3A-P
NPN,NC
LI12-20PO-ZBA-3A-P
PNP,NO
LI12-20PC-ZBA-3A-P
PNP,NC
LI12-20NS-ZBA-4A-P
NPN NO+NC
LI12-20PS-ZBA-4A-P
PNP NO+NC
LI12 Connector
LI12-20NO-YBA-TA-P
NPN,NO
M12 connector
LI12-20NC-YBA-TA-P
NPN,NC
LI12-20PO-YBA-TA-P
PNP,NO
LI12-20PC-YBA-TA-P
PNP,NC
LI12-20NS-YBA-TA-P
NPN NO+NC
LI12-20PS-YBA-TA-P
PNP NO+NC
LI14 Pre-wired
LI14-20NO-ZBA-3A-P
NPN,NO
2 M cable
14mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI14-20NC-ZBA-3A-P
NPN,NC
LI14-20PO-ZBA-3A-P
PNP,NO
LI14-20PC-ZBA-3A-P
PNP,NC
LI14-20NS-ZBA-4A-P
NPN NO+NC
LI14-20PS-ZBA-4A-P
PNP NO+NC
LI14 Connector
LI14-20NO-YBA-TA-P
NPN,NO
M12 connector
LI14-20NC-YBA-TA-P
NPN,NC
LI14-20PO-YBA-TA-P
PNP,NO
LI14-20PC-YBA-TA-P
PNP,NC
LI14-20NS-YBA-TA-P
NPN NO+NC
LI14-20PS-YBA-TA-P
PNP NO+NC
LI15 Pre-wired
LI15-20NO-ZBA-3A-P
NPN,NO
2 M cable
15mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI15-20NC-ZBA-3A-P
NPN,NC
LI15-20PO-ZBA-3A-P
PNP,NO
LI15-20PC-ZBA-3A-P
PNP,NC
LI15-20NS-ZBA-4A-P
NPN NO+NC
LI15-20PS-ZBA-4A-P
PNP NO+NC
LI15 Connector
LI15-20NO-YBA-TA-P
NPN,NO
M12 connector
LI15-20NC-YBA-TA-P
NPN,NC
LI15-20PO-YBA-TA-P
PNP,NO
LI15-20PC-YBA-TA-P
PNP,NC
LI15-20NS-YBA-TA-P
NPN NO+NC
LI15-20PS-YBA-TA-P
PNP NO+NC
Electrical data
LED display
Yes
Allowable ripple voltage
<10%
Minimum interval time of the object to be detected
0.2ms
No-load current
<10mA
Leakage current
<0.01mA
Voltage drop
<1.5v at 200mA
Switching frequency
2KHZ
Pulse impedance
1KV
Switching hysteresis
15%
Repeat accuracy
<2%（Sr）
Degree of protection
IP67
Operating temperature
-25℃ to +70℃
Temperature drift
±10%（Sr）
Minimum detection object
D=2.5mm;L=4mm (Inner hole diameter 9mm, 10mm), D=2.7mm;L=5mm (Inner hole diameter 12mm, 14mm), D=3mm;L=6mm (Inner hole diameter 15mm)
Load short-circuit protection / reverse polarity protection
Yes
Overload protection
220mA
Data sheet
Ring Inductive Proximity Sensor Data Sheet
