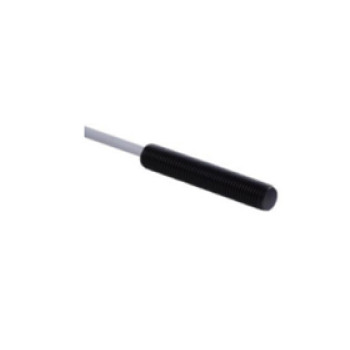

Metal Face Inductive Proximity Sensor | LJ08 Pre-wired Shielded Standard Cylindrical M8 2 Meter Cable Teflon Coating Anti-welding Slag Type | DADISICK
- group name
- All-metal Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Metal Face Inductive Proximity Sensor | LJ08 Pre-wired Shielded Cylindrical M8 | LJ08-02NO-ZAA-3A-T, LJ08-02NC-ZAA-3A-T, LJ08-02PO-ZAA-3A-T, LJ08-02PC-ZAA-3A-T, LJ08-02HO-ZAD-2A-T, LJ08-02HC-ZAD-2A-T
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 04:50:51 GMT
Paramtents
Size: Cylindrical M8
Detection range: 2mm
Case material: Stainless steel Teflon coating
Connection type: 2M cable
Output method: NPN NC/NO, PNP NC/NO
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Installation type: Shielded
Detection range: 2mm
Case material: Stainless steel Teflon coating
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO,
Detection range: 2mm
Case material: Stainless steel Teflon coating
Connection type: 2M cable
Output method: NPN NC, NPN NO, PNP NC, PNP NO,
Detailed
|
Metal Face Inductive Proximity Sensor M8 Pre-wired Shielded Series 2M Cable Teflon Coating Anti-welding Slag Type Datasheet
|
|||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
Technical Description | |
LJ08-02NO-ZAA-3A-T | NPN NO | 2mm | 2M Cable | 200mA | Shielded | 10-30VDC | Stainless steel Teflon coating | Teflon Coating Anti-welding Slag Type | |
LJ08-02NC-ZAA-3A-T | NPN NC | ||||||||
LJ08-02PO-ZAA-3A-T | PNP NO | ||||||||
LJ08-02PC-ZAA-3A-T | PNP NC | ||||||||
LJ08-02HO-ZAD-2A-T | DC 2- wire NO | 10-60VDC
| |||||||
LJ08-02HC-ZAD-2A-T | DC 2- wire NC | ||||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency | 700HZ | ||
Response time | 0.1ms | ||
Switching Hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | Stainless steel | ||
Data sheet
