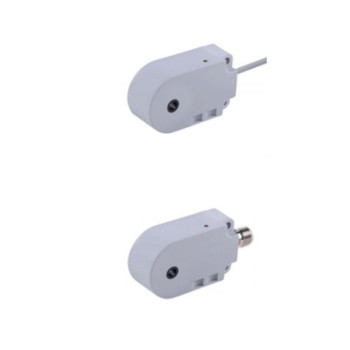

Ring Inductive Proximity Sensor | Metal Pass Type | LI03, LI04, LI05, LI06, LI08 Pre-wired and Connector Inner Hole DiameterInner 3, 4, 5, 6, 8mm | DADISICK

Ring Inductive Proximity Sensor | Metal Pass Type | LI03, LI04, LI05, LI06, LI08 Pre-wired and Connector Inner Hole DiameterInner 3, 4, 5, 6, 8mm | DADISICK
group name
Ring Inductive Proximity Sensor
Min Order
1 piece
brand name
DADISICK
model
Ring Inductive Proximity Sensor | LI03, LI04, LI05, LI06, LI08 Pre-wired and Connector | LI03-20NO-ZBA-3A-P, LI03-20NC-ZBA-3A-P, LI03-20PO-ZBA-3A-P, LI03-20PC-ZBA-3A-P, LI03-20NS-ZBA-4A-P, LI03-20PS-ZBA-4A-P, LI03-20NO-YBA-TA-P, LI03-20NC-YBA-TA-P, LI03-20PO-YBA-TA-P, LI03-20PC-YBA-TA-P, LI03-20NS-YBA-TA-P, LI03-20PS-YBA-TA-P, LI04-20NO-ZBA-3A-P, LI04-20NC-ZBA-3A-P, LI04-20PO-ZBA-3A-P, LI04-20PC-ZBA-3A-P, LI04-20NS-ZBA-4A-P, LI04-20PS-ZBA-4A-P, LI04-20NO-YBA-TA-P, LI04-20NC-YBA-TA-P, LI04-20PO-YBA-TA-P, LI04-20PC-YBA-TA-P, LI04-20NS-YBA-TA-P, LI04-20PS-YBA-TA-P, LI05-20NO-ZBA-3A-P, LI05-20NC-ZBA-3A-P, LI05-20PO-ZBA-3A-P, LI05-20PC-ZBA-3A-P, LI05-20NS-ZBA-4A-P, LI05-20PS-ZBA-4A-P, LI05-20NO-YBA-TA-P, LI05-20NC-YBA-TA-P, LI05-20PO-YBA-TA-P, LI05-20PC-YBA-TA-P, LI05-20NS-YBA-TA-P, LI05-20PS-YBA-TA-P, LI06-20NO-ZBA-3A-P, LI06-20NC-ZBA-3A-P, LI06-20PO-ZBA-3A-P, LI06-20PC-ZBA-3A-P, LI06-20NS-ZBA-4A-P, LI06-20PS-ZBA-4A-P, LI06-20NO-YBA-TA-P, LI06-20NC-YBA-TA-P, LI06-20PO-YBA-TA-P, LI06-20PC-YBA-TA-P, LI06-20NS-YBA-TA-P, LI06-20PS-YBA-TA-P, LI08-20NO-ZBA-3A-P, LI08-20NC-ZBA-3A-P, LI08-20PO-ZBA-3A-P, LI08-20PC-ZBA-3A-P, LI08-20NS-ZBA-4A-P, LI08-20PS-ZBA-4A-P, LI08-20PS-YBA-TA-P
Delivery clauses under the trade mode
CIP
update time
Sun, 27 Apr 2025 04:33:00 GMT
contact supplier

Paramtents

  • Inner Hole DiameterInner: 3, 4, 5, 6, 8mm

  • Detection range: 20mm

  • Case material: PBT

  • Connection type: 2M Cable, M12 Connector

  • Output method: NPN NO/NC，PNP NO/NC

  • Degree of protection: IP67

  • Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

  • Min Order1 piece

Briefing

Detection range: 20mm
Case material: PBT
Connection type: 2M Cable, M12 Connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Ring Inductive Proximity Sensor Metal Pass Type Pre-wired and Connector Series Datasheet
Model
Output
Connection
Inner hole diameter
Sensing distance
Maximum load current
Mounting
Operating voltage
Case material
LI03 Pre-wired
LI03-20NO-ZBA-3A-P
NPN,NO
2 M cable
3mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI03-20NC-ZBA-3A-P
NPN,NC
LI03-20PO-ZBA-3A-P
PNP,NO
LI03-20PC-ZBA-3A-P
PNP,NC
LI03-20NS-ZBA-4A-P
NPN NO+NC
LI03-20PS-ZBA-4A-P
PNP NO+NC
LI03 Connector
LI03-20NO-YBA-TA-P
NPN,NO
M12 connector
LI03-20NC-YBA-TA-P
NPN,NC
LI03-20PO-YBA-TA-P
PNP,NO
LI03-20PC-YBA-TA-P
PNP,NC
LI03-20NS-YBA-TA-P
NPN NO+NC
LI03-20PS-YBA-TA-P
PNP NO+NC
LI04 Pre-wired
LI04-20NO-ZBA-3A-P
NPN,NO
2 M cable
4mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI04-20NC-ZBA-3A-P
NPN,NC
LI04-20PO-ZBA-3A-P
PNP,NO
LI04-20PC-ZBA-3A-P
PNP,NC
LI04-20NS-ZBA-4A-P
NPN NO+NC
LI04-20PS-ZBA-4A-P
PNP NO+NC
LI04 Connector
LI04-20NO-YBA-TA-P
NPN,NO
M12 connector
LI04-20NC-YBA-TA-P
NPN,NC
LI04-20PO-YBA-TA-P
PNP,NO
LI04-20PC-YBA-TA-P
PNP,NC
LI04-20NS-YBA-TA-P
NPN NO+NC
LI04-20PS-YBA-TA-P
PNP NO+NC
LI05 Pre-wired
LI05-20NO-ZBA-3A-P
NPN,NO
2 M cable
5mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI05-20NC-ZBA-3A-P
NPN,NC
LI05-20PO-ZBA-3A-P
PNP,NO
LI05-20PC-ZBA-3A-P
PNP,NC
LI05-20NS-ZBA-4A-P
NPN NO+NC
LI05-20PS-ZBA-4A-P
PNP NO+NC
LI05 Connector
LI05-20NO-YBA-TA-P
NPN,NO
M12 connector
LI05-20NC-YBA-TA-P
NPN,NC
LI05-20PO-YBA-TA-P
PNP,NO
LI05-20PC-YBA-TA-P
PNP,NC
LI05-20NS-YBA-TA-P
NPN NO+NC
LI05-20PS-YBA-TA-P
PNP NO+NC
LI06 Pre-wired
LI06-20NO-ZBA-3A-P
NPN,NO
2 M cable
5mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI06-20NC-ZBA-3A-P
NPN,NC
LI06-20PO-ZBA-3A-P
PNP,NO
LI06-20PC-ZBA-3A-P
PNP,NC
LI06-20NS-ZBA-4A-P
NPN NO+NC
LI06-20PS-ZBA-4A-P
PNP NO+NC
LI06 Connector
LI06-20NO-YBA-TA-P
NPN,NO
M12 connector
LI06-20NC-YBA-TA-P
NPN,NC
LI06-20PO-YBA-TA-P
PNP,NO
LI06-20PC-YBA-TA-P
PNP,NC
LI06-20NS-YBA-TA-P
NPN NO+NC
LI06-20PS-YBA-TA-P
PNP NO+NC
LI08 Pre-wired
LI08-20NO-ZBA-3A-P
NPN,NO
2 M cable
8mm
20mm
200mA
Non-shielded
10-30VDC
PBT
LI08-20NC-ZBA-3A-P
NPN,NC
LI08-20PO-ZBA-3A-P
PNP,NO
LI08-20PC-ZBA-3A-P
PNP,NC
LI08-20NS-ZBA-4A-P
NPN NO+NC
LI08-20PS-ZBA-4A-P
PNP NO+NC
LI08 Connector
LI08-20NO-YBA-TA-P
NPN,NO
M12 connector
LI08-20NC-YBA-TA-P
NPN,NC
LI08-20PO-YBA-TA-P
PNP,NO
LI08-20PC-YBA-TA-P
PNP,NC
LI08-20NS-YBA-TA-P
NPN NO+NC
LI08-20PS-YBA-TA-P
PNP NO+NC
Electrical data
LED display
Yes
Allowable ripple voltage
<10%
Minimum interval time of the object to be detected
0.2ms
No-load current
<10mA
Leakage current
<0.01mA
Voltage drop
<1.5v at 200mA
Switching frequency
2KHZ
Pulse impedance
1KV
Switching hysteresis
15%
Repeat accuracy
<2%（Sr）
Degree of protection
IP67
Operating temperature
-25℃ to +70℃
Temperature drift
±10%（Sr）
Minimum detection object
D=1mm;L=2mm (Inner hole diameter 3mm), D=2mm;L=2mm (Inner hole diameter 4mm, 5mm, 6mm), D=2mm;L=3mm (Inner hole diameter 8mm)
Load short-circuit protection / reverse polarity protection
Yes
Overload protection
220mA
Data sheet
Ring Inductive Proximity Sensor Data Sheet
