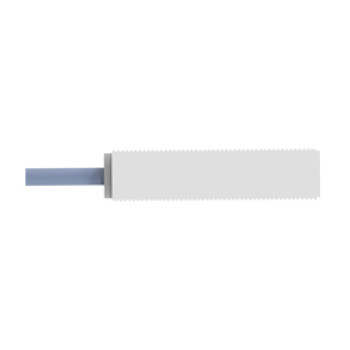

Corrosion-resistant Inductive Proximity Sensor | LF12 Pre-wired Shielded Cylindrical M12 2M Cable | DADISICK
- group name
- Corrosion-resistant Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Corrosion-resistant Inductive Proximity Sensor | LF12 Pre-wired Shielded | LF12-02NO-ZAA-3A-T, LF12-02NC-ZAA-3A-T, LF12-02PO-ZAA-3A-T, LF12-02PC-ZAA-3A-T, LF12-02NS-ZAA-4A-T, LF12-02PS-ZAA-4A-T, LF12-02HO-ZAD-2A-T, LF12-02HC-ZAD-2A-T, LF12-04NO-ZAA-3A-T, LF12-04NC-ZAA-3A-T, LF12-04PO-ZAA-3A-T, LF12-04PC-ZAA-3A-T, LF12-04NS-ZAA-4A-T, LF12-04PS-ZAA-4A-T, LF12-04HO-ZAD-2A-T, LF12-04HC-ZAD-2A-T
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 04:53:02 GMT
Paramtents
Size: Cylindrical M12
Detection range: 2mm, 4mm
Case material: PTFE
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 2mm, 4mm
Case material: PTFE
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC
Case material: PTFE
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC
Detailed
|
Corrosion-resistant Inductive Proximity Sensor M12 Pre-wired Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LF12-02NO-ZAA-3A-T | NPN,NO | 2mm | 2 M cable | 200mA | Shielded | 10-30VDC | PTFE | |
LF12-02NC-ZAA-3A-T | NPN,NC | |||||||
LF12-02PO-ZAA-3A-T | PNP,NO | |||||||
LF12-02PC-ZAA-3A-T | PNP,NC | |||||||
LF12-02NS-ZAA-4A-T | NPN NO+NC | |||||||
LF12-02PS-ZAA-4A-T | PNP NO+NC | |||||||
LF12-02HO-ZAD-2A-T | NO | 10-60VDC | ||||||
LF12-02HC-ZAD-2A-T | NC | |||||||
LF12-04NO-ZAA-3A-T | NPN,NO | 4mm | 2 M cable | 200mA | Shielded | 10-30VDC | PTFE | |
LF12-04NC-ZAA-3A-T | NPN,NC | |||||||
LF12-04PO-ZAA-3A-T | PNP,NO | |||||||
LF12-04PC-ZAA-3A-T | PNP,NC | |||||||
LF12-04NS-ZAA-4A-T | NPN NO+NC | |||||||
LF12-04PS-ZAA-4A-T | PNP NO+NC | |||||||
LF12-04HO-ZAD-2A-T | NO | 10-60VDC | ||||||
LF12-04HC-ZAD-2A-T | NC | |||||||
|
Electrical data
|
|||
|
LED display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency | 1KHz | ||
Response time | 0.1ms | ||
Switching hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PTFE | ||
