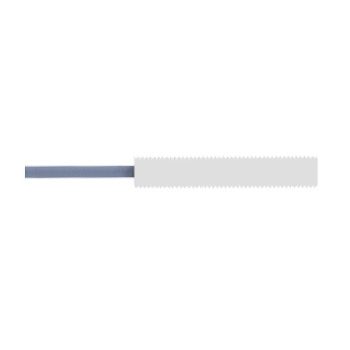

Corrosion-resistant Inductive Proximity Sensor | LF08 Pre-wired Non-Shielded Cylindrical M8 Short Type 2M Cable | DADISICK
- group name
- Corrosion-resistant Inductive Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Corrosion-resistant Inductive Proximity Sensor | LF08 Pre-wired Non-Shielded | LF08-02NO-ZBA-3M-T, LF08-02NC-ZBA-3M-T, LF08-02PO-ZBA-3M-T, LF08-02PC-ZBA-3M-T, LF08-02NS-ZBA-4M-T, LF08-02PS-ZBA-4M-T, LF08-02HO-ZBD-2M-T, LF08-02HC-ZBD-2M-T, LF08-04NO-ZBA-3M-T, LF08-04NC-ZBA-3M-T, LF08-04PO-ZBA-3M-T, LF08-04PC-ZBA-3M-T, LF08-04NS-ZBA-4M-T, LF08-04PS-ZBA-4M-T, LF08-04HO-ZBD-2M-T, LF08-04HC-ZBD-2M-T
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:55:01 GMT
Paramtents
Size: Cylindrical M8
Detection range: 2mm, 4mm
Case material: PTFE
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 2mm, 4mm
Case material: PTFE
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC
Case material: PTFE
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC
Detailed
|
Corrosion-resistant Inductive Proximity Sensor M8 Pre-wired Non-Shielded Short Type Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LF08-02NO-ZBA-3M-T | NPN,NO | 2mm | 2 M cable | 200mA | Non-shielded | 10-30VDC | PTFE | |
LF08-02NC-ZBA-3M-T | NPN,NC | |||||||
LF08-02PO-ZBA-3M-T
| PNP,NO | |||||||
LF08-02PC-ZBA-3M-T
| PNP,NC | |||||||
LF08-02NS-ZBA-4M-T
| NPN NO+NC | |||||||
LF08-02PS-ZBA-4M-T | PNP NO+NC | |||||||
LF08-02HO-ZBD-2M-T | NO | 10-60VDC | ||||||
LF08-02HC-ZBD-2M-T | NC | |||||||
LF08-04NO-ZBA-3M-T | NPN,NO | 4mm | 2 M cable | 200mA | Non-shielded | 10-30VDC | PTFE | |
LF08-04NC-ZBA-3M-T | NPN,NC | |||||||
LF08-04PO-ZBA-3M-T | PNP,NO | |||||||
LF08-04PC-ZBA-3M-T | PNP,NC | |||||||
LF08-04NS-ZBA-4M-T | NPN NO+NC | |||||||
LF08-04PS-ZBA-4M-T | PNP NO+NC | |||||||
LF08-04HO-ZBD-2M-T | NO | 10-60VDC | ||||||
LF08-04HC-ZBD-2M-T
| NC | |||||||
|
Electrical data
|
|||
|
LED display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency | 2KHz (Sensing distance 2mm) 1KHz (Sensing distance 4mm) | ||
Response time | 0.1ms (Sensing distance 2mm) 0.2ms (Sensing distance 4mm) | ||
Switching hysteresis | <15%（Sr） | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PTFE | ||
Data sheet
