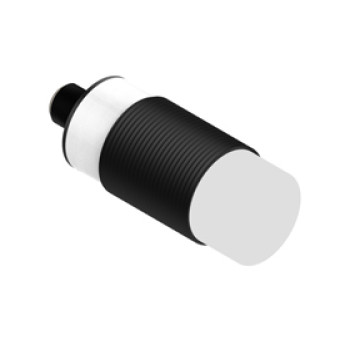

Weld and Magnetic Immune Proximity Sensor | LD30 Connector Non-Shielded Cylindrical M30 Short Type M12 Connector | DADISICK
- group name
- Anti-welding Slag and High Magnetic Resistance Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Weld and Magnetic Immune Proximity Sensor | LD30 Connector Non-Shielded | LD30-15NO-YBA-TM-H, LD30-15NC-YBA-TM-H, LD30-15PO-YBA-TM-H, LD30-15PC-YBA-TM-H, LD30-15NS-YBA-TM-H, LD30-15PS-YBA-TM-H, LD30-15HO-YBD-TM-H, LD30-15HC-YBD-TM-H
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 04:28:17 GMT
Paramtents
Size: Cylindrical M30
Detection range: 15mm
Case material: Brass, Teflon coating
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 15mm
Case material: Brass, Teflon coating
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC
Case material: Brass, Teflon coating
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC
Detailed
|
Weld and Magnetic Immune Proximity Sensor M30 Connector Non-Shielded Short Type Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LD30-15NO-YBA-TM-H | NPN,NO | 15mm | M12 connector | 200mA | Non-shielded | 10-30VDC | Brass, Teflon coating | |
LD30-15NC-YBA-TM-H | NPN,NC | |||||||
LD30-15PO-YBA-TM-H | PNP,NO | |||||||
LD30-15PC-YBA-TM-H | PNP,NC | |||||||
LD30-15NS-YBA-TM-H | NPN NO+NC | |||||||
LD30-15PS-YBA-TM-H | PNP NO+NC | |||||||
LD30-15HO-YBD-TM-H | NO | 10-60VDC | ||||||
LD30-15HC-YBD-TM-H | NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 200Hz | ||
Response time | 1ms | ||
Switching Hysteresis | <15%（Sr） | ||
Constant magnetic field B | 200mT | ||
Alternating magnetic field B | 200mT | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PTFE | ||
