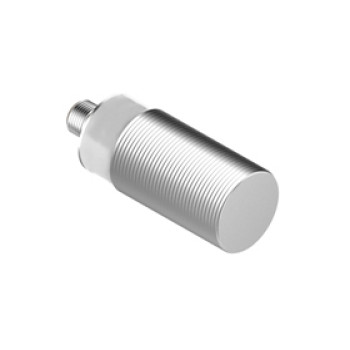

Metal Face Inductive Proximity Sensor | LJ30 Connector Shielded Cylindrical M30 Short Type M12 Connector | DADISICK

group name: All-metal Inductive Proximity Sensor

Min Order: 1 piece

brand name: DADISICK

model: Metal Face Inductive Proximity Sensor | LJ30 Connector Shielded Cylindrical M30 | LJ30-10NO-YAA-TM-S, LJ30-10NC-YAA-TM-S, LJ30-10PO-YAA-TM-S, LJ30-10PC-YAA-TM-S, LJ30-10HO-YAD-TM-S, LJ30-10HC-YAD-TM-S

Delivery clauses under the trade mode: CIP

update time: Sun, 27 Apr 2025 04:35:05 GMT

contact supplier

Paramtents

Size: Cylindrical M30
Detection range: 10mm
Case material: Stainless steel
Connection type: M12 Connector
Output method: NPN NC/NO, PNP NC/ NO, NO, NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)

Packging & Delivery

Min Order1 piece

Briefing

Installation type: Shielded
Detection range: 10mm
Case material: stainless steel
Connection type: M12 Connector
Output method: NPN NC, NPN NO, PNP NC, PNP NO, NO, NC

Detailed

Metal Face Inductive Proximity Sensor M30 Connector Short Type Shielded Series M12 Connector Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LJ30-10NO-YAA-TM-S	NPN NO	10mm	M12 Connector	200mA	Shielded	10-30VDC	Stainless steel
LJ30-10NC-YAA-TM-S	NPN NC
LJ30-10PO-YAA-TM-S	PNP NO
LJ30-10PC-YAA-TM-S	PNP NC
LJ30-10HO-YAD-TM-S	DC 2-wire NO					10-60VDC
LJ30-10HC-YAD-TM-S	DC 2-wire NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	300HZ
Response time	0.5ms
Switching Hysteresis	<15%（Sr）
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	Stainless steel

Data sheet

Metal Face Series Inductive Proximity Switch DataSheet
