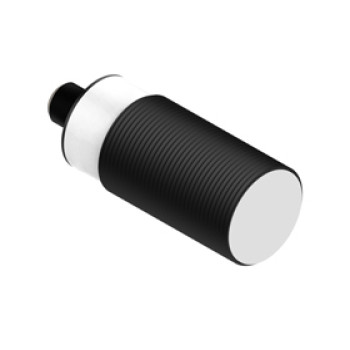

Weld and Magnetic Immune Proximity Sensor | LD30 Connector Shielded Cylindrical M30 M12 Connector | DADISICK

model: Weld and Magnetic Immune Proximity Sensor | LD30 Connector Shielded | LD30-10NO-YAA-TA-H, LD30-10NC-YAA-TA-H, LD30-10PO-YAA-TA-H, LD30-10PC-YAA-TA-H, LD30-10NS-YAA-TA-H, LD30-10PS-YAA-TA-H, LD30-10HO-YAD-TA-H, LD30-10HC-YAD-TA-H, LD30-16NO-YAA-TA-H, LD30-16NC-YAA-TA-H, LD30-16PO-YAA-TA-H, LD30-16PC-YAA-TA-H, LD30-16NS-YAA-TA-H, LD30-16PS-YAA-TA-H, LD30-16HO-YAD-TA-H, LD30-16HC-YAD-TA-H

contact supplier

Paramtents

Packging & Delivery

Briefing

Detection range: 10mm, 16mm
Case material: Brass, Teflon coating
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC

Detailed

Weld and Magnetic Immune Proximity Sensor M30 Connector Shielded Series Datasheet
Model	Output	Sensing distance	Connection	Maximum load current	Mounting	Operating voltage	Case material
LD30-10NO-YAA-TA-H	NPN,NO	10mm	M12 connector	200mA	Shielded	10-30VDC	Brass, Teflon coating
LD30-10NC-YAA-TA-H	NPN,NC
LD30-10PO-YAA-TA-H	PNP,NO
LD30-10PC-YAA-TA-H	PNP,NC
LD30-10NS-YAA-TA-H	NPN NO+NC
LD30-10PS-YAA-TA-H	PNP NO+NC
LD30-10HO-YAD-TA-H	NO					10-60VDC
LD30-10HC-YAD-TA-H	NC

Electrical data
LED Display	Yes
Allowable ripple voltage	<10%
No-load current	<10mA
Leakage Current	<0.01mA
Voltage drop	<1.5v
Switching frequency	200Hz (Sensing distance 10mm) 800HZ (Sensing distance 16mm)
Response time	1ms (Sensing distance 10mm) 0.2ms (Sensing distance 16mm)
Switching Hysteresis	<15%（Sr）
Constant magnetic field B	100mT (Sensing distance 10mm) 150mT (Sensing distance 16mm)
Alternating magnetic field B	100mT (Sensing distance 10mm) 150mT (Sensing distance 16mm)
Repeat accuracy	<1.0%（Sr）
Degree of protection	IP67
Operating temperature	-25℃ to +70℃
Temperature Drift	<10%（Sr）
Load short-circuit protection / reverse polarity protection	Yes
Overload protection	220mA
Sensing surface material	PTFE

Data sheet

Weld and Magnetic Immune Proximity Sensor Data Sheet
