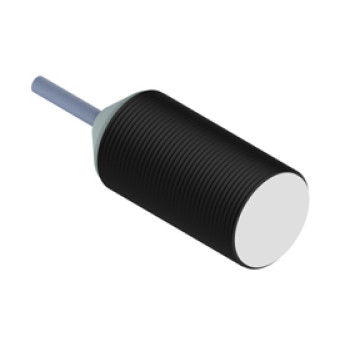

Weld and Magnetic Immune Proximity Sensor | LD30 Pre-wired Shielded Cylindrical M30 2M Cable | DADISICK
- group name
- Anti-welding Slag and High Magnetic Resistance Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Weld and Magnetic Immune Proximity Sensor | LD30 Pre-wired Shielded | LD30-10NO-ZAA-3A-H, LD30-10NC-ZAA-3A-H, LD30-10PO-ZAA-3A-H, LD30-10PC-ZAA-3A-H, LD30-10NS-ZAA-4A-H, LD30-10PS-ZAA-4A-H, LD30-10HO-ZAD-2A-H, LD30-10HC-ZAD-2A-H, LD30-16NO-ZAA-3A-H, LD30-16NC-ZAA-3A-H, LD30-16PO-ZAA-3A-H, LD30-16PC-ZAA-3A-H, LD30-16NS-ZAA-4A-H, LD30-16PS-ZAA-4A-H, LD30-16HO-ZAD-2A-H, LD30-16HC-ZAD-2A-H
- Delivery clauses under the trade mode
- CIP
- update time
- Sun, 27 Apr 2025 04:53:02 GMT
Paramtents
Size: Cylindrical M30
Detection range: 10mm, 16mm
Case material: Brass, Teflon coating
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 10mm, 16mm
Case material: Brass, Teflon coating
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC
Case material: Brass, Teflon coating
Connection type: 2M Cable
Output method: NPN NO/NC，PNP NO/NC
Detailed
|
Weld and Magnetic Immune Proximity Sensor M30 Pre-wired Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LD30-10NO-ZAA-3A-H | NPN,NO | 10mm | 2 M cable | 200mA | Shielded | 10-30VDC | Brass, Teflon coating | |
LD30-10NC-ZAA-3A-H | NPN,NC | |||||||
LD30-10PO-ZAA-3A-H | PNP,NO | |||||||
LD30-10PC-ZAA-3A-H | PNP,NC | |||||||
LD30-10NS-ZAA-4A-H | NPN NO+NC | |||||||
LD30-10PS-ZAA-4A-H | PNP NO+NC | |||||||
LD30-10HO-ZAD-2A-H | NO | 10-60VDC | ||||||
LD30-10HC-ZAD-2A-H | NC | |||||||
LD30-16NO-ZAA-3A-H | NPN,NO | 16mm | 2 M cable | 200mA | Shielded | 10-30VDC | Brass, Teflon coating | |
LD30-16NC-ZAA-3A-H | NPN,NC | |||||||
LD30-16PO-ZAA-3A-H | PNP,NO | |||||||
LD30-16PC-ZAA-3A-H | PNP,NC | |||||||
LD30-16NS-ZAA-4A-H | NPN NO+NC | |||||||
LD30-16PS-ZAA-4A-H | PNP NO+NC | |||||||
LD30-16HO-ZAD-2A-H | NO | 10-60VDC | ||||||
LD30-16HC-ZAD-2A-H | NC | |||||||
|
Electrical data
|
|||
|
LED display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 800Hz (Sensing distance 10mm) 200Hz (Sensing distance 16mm) | ||
Response time | 0.2ms (Sensing distance 10mm) 1ms (Sensing distance 16mm) | ||
Switching hysteresis | <15%（Sr） | ||
Constant magnetic field B | 100mT | ||
Alternating magnetic field B | 100mT | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PTFE | ||
