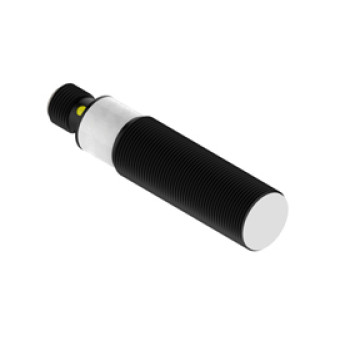

Weld and Magnetic Immune Proximity Sensor | LD18 Connector Shielded Cylindrical M18 Short Type M12 Connector | DADISICK
- group name
- Anti-welding Slag and High Magnetic Resistance Proximity Sensor
- Min Order
- 1 piece
- brand name
- DADISICK
- model
- Weld and Magnetic Immune Proximity Sensor | LD18 Connector Shielded | LD18-05NO-YAA-TM-H, LD18-05NC-YAA-TM-H, LD18-05PO-YAA-TM-H, LD18-05PC-YAA-TM-H, LD18-05NS-YAA-TM-H, LD18-05PS-YAA-TM-H, LD18-05HO-YAD-TM-H, LD18-05HC-YAD-TM-H, LD18-08NO-YAA-TM-H, LD18-08NC-YAA-TM-H, LD18-08PO-YAA-TM-H, LD18-08PC-YAA-TM-H, LD18-08NS-YAA-TM-H, LD18-08PS-YAA-TM-H, LD18-08HO-YAD-TM-H, LD18-08HC-YAD-TM-H
- Delivery clauses under the trade mode
- CIP
- update time
- Tue, 04 Nov 2025 08:45:35 GMT
Paramtents
Size: Cylindrical M18
Detection range: 5mm, 8mm
Case material: Brass, Teflon coating
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC
Degree of protection: IP67
Operating temperature: -25°C~+70°C (248~343K)
Packging & Delivery
-
Min Order1 piece
Briefing
Detection range: 5mm, 8mm
Case material: Brass, Teflon coating
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC
Case material: Brass, Teflon coating
Connection type: M12 connector
Output method: NPN NO/NC，PNP NO/NC
Detailed
|
Weld and Magnetic Immune Proximity Sensor M18 Connector Shielded Series Datasheet
|
||||||||
|
Model
|
Output | Sensing distance | Connection | Maximum load current | Mounting | Operating voltage | Case material |
|
LD18-05NO-YAA-TM-H | NPN,NO | 5mm | M12 connector | 200mA | Shielded | 10-30VDC | Brass, Teflon coating | |
LD18-05NC-YAA-TM-H | NPN,NC | |||||||
LD18-05PO-YAA-TM-H | PNP,NO | |||||||
LD18-05PC-YAA-TM-H | PNP,NC | |||||||
LD18-05NS-YAA-TM-H | NPN NO+NC | |||||||
LD18-05PS-YAA-TM-H | PNP NO+NC | |||||||
LD18-05HO-YAD-TM-H | NO | 10-60VDC | ||||||
LD18-05HC-YAD-TM-H | NC | |||||||
LD18-08NO-YAA-TM-H | NPN,NO | 8mm | M12 connector | 200mA | Shielded | 10-30VDC | Brass, Teflon coating | |
LD18-08NC-YAA-TM-H | NPN,NC | |||||||
LD18-08PO-YAA-TM-H | PNP,NO | |||||||
LD18-08PC-YAA-TM-H | PNP,NC | |||||||
LD18-08NS-YAA-TM-H | NPN NO+NC | |||||||
LD18-08PS-YAA-TM-H | PNP NO+NC | |||||||
LD18-08HO-YAD-TM-H | NO | 10-60VDC | ||||||
LD18-08HC-YAD-TM-H | NC | |||||||
|
Electrical data
|
|||
|
LED Display
|
Yes
|
||
|
Allowable ripple voltage
|
<10%
|
||
|
No-load current
|
<10mA
|
||
Leakage Current | <0.01mA | ||
Voltage drop | <1.5v | ||
Switching frequency
| 800Hz (Sensing distance 5mm) 500HZ (Sensing distance 8mm) | ||
Response time | 0.2ms (Sensing distance 5mm) 0.5ms (Sensing distance 8mm) | ||
Switching Hysteresis | <15%（Sr） | ||
Constant magnetic field B | 150mT | ||
Alternating magnetic field B | 150mT | ||
Repeat accuracy | <1.0%（Sr） | ||
Degree of protection | IP67 | ||
Operating temperature | -25℃ to +70℃ | ||
Temperature Drift | <10%（Sr） | ||
Load short-circuit protection / reverse polarity protection | Yes | ||
Overload protection | 220mA | ||
Sensing surface material | PTFE | ||
